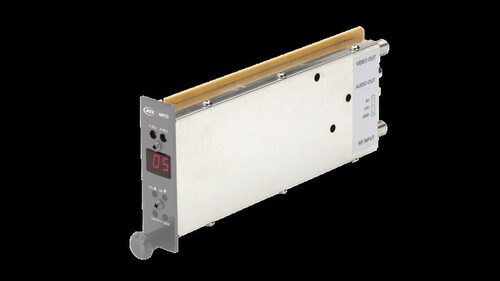

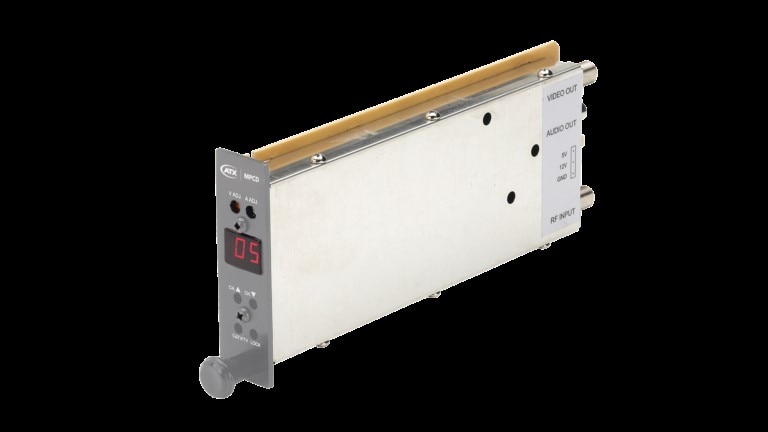

Pico Digital Agile A/V Mini-Demodulator (MPCD)
- Brand: Pico Digital
- P\N: MPCD
Do you have questions?
Please contact our experts for assistance.
Description
Pico Digital Agile A/V Mini-Demodulator (MPCD)
Key Features:
- 125 Channel frequency range 54~806MHz (CATV 2~13, A1~A5, A~ZZZ, 89~125, UHF 14~69)
- Agile microprocessor control with push-button channel selection provides ease of installation, configuration and servicing
- SAW filtered for precise adjacent channel rejection
- >60dB Signal to noise ratio for crisp, sharp picture
- Digital display provides quick channel identification
- Non-volatile memory ensures channel programming remains after power loss
- Single-slot design allows up to 12 or 16 units in Pico Macom’s MPC-12, MPC-12R and MPC-16PS/CS chassis
- Fully compatible with most other manufacturers’ “mini-mod” chassis
Specifications
Input Frequency Range | 54~806MHz |
Tuning | Agile |
RF Input Level | 15dBmV |
Noise Figure | 5dB (VHF) / 7dB (UHF) |
Video Detection Type | Envelope |
Video Frequency Response | ±1.5dB |
Video Signal to Noise | 60dB |
Audio Detection Type | Quadrature FM |
Audio Frequency Response | 50~15,000Hz |
RF Input Connection | 75Ω F-Female |
Video Output Connection | 75Ω F-Female |
Audio Output Connection | 600Ω RCA-Female |
Voltage Input | +5, +12VDC |
Dimensions | 2.07” (L) x 8” (D) x 3.45” (H) |
Weight | 0.7 lbs. |
