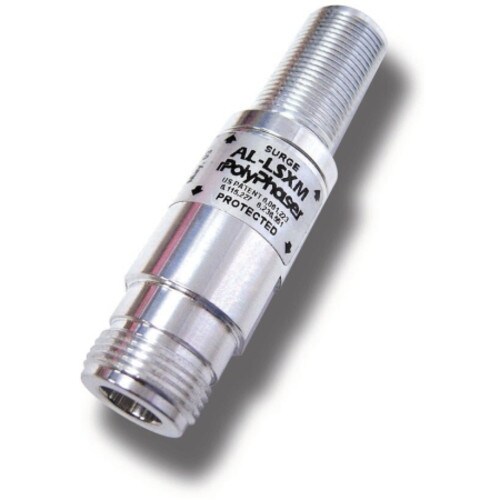

PolyPhaser 2.0-6.0 Ghz Protector (AL-LSXM)

PolyPhaser 2.0-6.0 Ghz Protector (AL-LSXM)

Introducing the PolyPhaser 2.0-6.0 Ghz Protector, a state-of-the-art lightning/NEMP protector designed to operate at microwave frequencies. This robust device is ideal for applications such as transmit/receive point to point links and broadcast. With its DC blocking feature, it ensures compatibility with your equipment, providing a seamless integration into your existing setup.

Key Features and Benefits

• Mount Type: Bulkhead - Offers a secure and stable installation.
• Frequency Range: 2-6 GHz - Ensures optimal performance across a wide range of frequencies.
• Maximum Power: 10 W - Provides sufficient power for most applications.
• Nominal Insertion Loss: 0.1 dB - Minimizes signal loss for improved performance.
• RF Power: 10W - Delivers reliable and consistent power.
• Compliance Standards: CE - Guarantees that the product meets high safety, health, and environmental protection requirements.
• Maximum Throughput Energy: 0.5 ?J - Ensures efficient energy transfer.
• Protected Side Connector: N Female - Provides a secure and reliable connection.
• Surge Side Connector: N Female - Ensures a safe and secure connection during surge events.
• Motorola Part: DSALLSXM - Guarantees compatibility with Motorola devices.
• Compatibility: Works with Proxim Linx & Tsunami radios (any broadband that uses RG coaxial cables) - Offers a wide range of compatibility options.

Technical Specifications

The PolyPhaser Protector is designed to handle a surge current of up to 20kA. It activates 2.5 ns after reaching the DC threshold and turns on at 600Vdc. The device features a multi-strike capability, an aluminum enclosure, and stainless steel hardware, ensuring durability and longevity. It is also RoHS Compliant, ensuring it meets specific criteria relating to health and environmental considerations.

Experience the peace of mind that comes with knowing your equipment is protected. Don't wait for disaster to strike. Invest in the PolyPhaser Protector today and safeguard your valuable equipment against potential damage. Order now!
