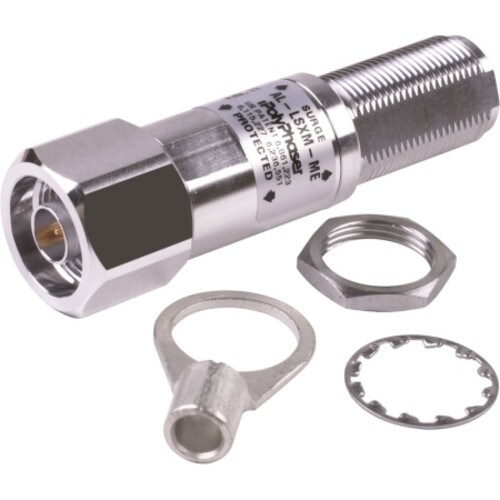

PolyPhaser 4.2-6.0 Micro LSXM Arrestor (AL-LSXM-ME)

Lightning/NEMP protectors operate at microwave frequencies, used in applications such as transmit/receive point to point links and broadcast. Mounts through bulkhead panel of max. 1/4" thickness. DC blocking ensures compatibility with equipment. Handles 20kA surge current. Turns on at 600Vdc, activates 2.5 ns after reaching DC threshold. Features multi-strike capability, aluminum enclosure and stainless steel hardware. RoHS Compliant.

Key Features:

• Mount Type: Bulkhead
• Frequency Range: 2-6 GHz
• Maximum Power: 10 W
• Nominal Insertion Loss: 0.1 dB
• RF Power: 10W
• Compliance Standards: CE
• Maximum Throughput Energy: 0.5 ?J
• Protected Side Connector: N Male
• Surge Side Connector: N Female
• Motorola Part: DSALLSXMME
