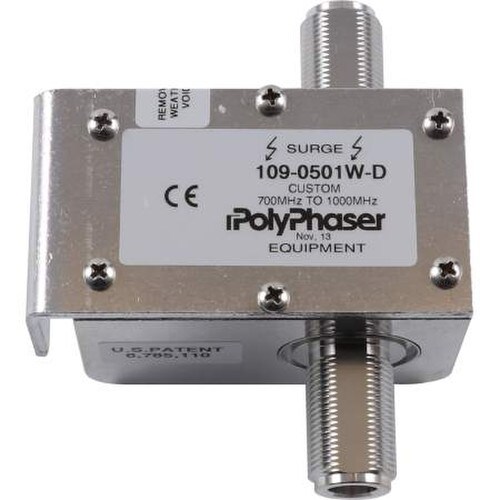

PolyPhaser Bulkhead Arrestor N-F to N-F (109-0501W-D)

PolyPhaser Bulkhead Arrestor N-F to N-F (109-0501W-D)

Key Features and Benefits

Experience the power and reliability of the PolyPhaser Bulkhead Arrestor, designed to provide superior protection for your RF systems. This high-quality device boasts a frequency range of 700-1000 MHz, ensuring optimal performance for a wide range of applications.

• Maximum Power: 750 W - Offers robust performance for demanding applications
• Turn On Voltage: 16.5 VDC - Ensures quick and efficient operation
• Nominal Insertion Loss: 0.4 dB - Minimizes signal loss for improved performance
• RF Power: 750W - Provides ample power for your RF systems
• Maximum Throughput Energy: 500 µJ - Guarantees efficient energy transfer

Technical Specifications

The PolyPhaser Bulkhead Arrestor is a high-performance device that delivers exceptional results. Here are the technical specifications:

• Frequency Range: 700-1000 MHz
• Maximum Power: 750 W
• Turn On Voltage: 16.5 VDC
• Nominal Insertion Loss: 0.4 dB
• RF Power: 750W
• Maximum Throughput Energy: 500 µJ

Experience the PolyPhaser Difference

With the PolyPhaser Bulkhead Arrestor, you're not just investing in a product, but in a promise of quality, reliability, and performance. This device is designed to meet your needs and exceed your expectations, providing you with the peace of mind that comes from knowing your RF systems are protected.

Don't compromise on the safety and efficiency of your RF systems. Choose the PolyPhaser Bulkhead Arrestor for superior performance and reliability. Order now and experience the difference for yourself!
