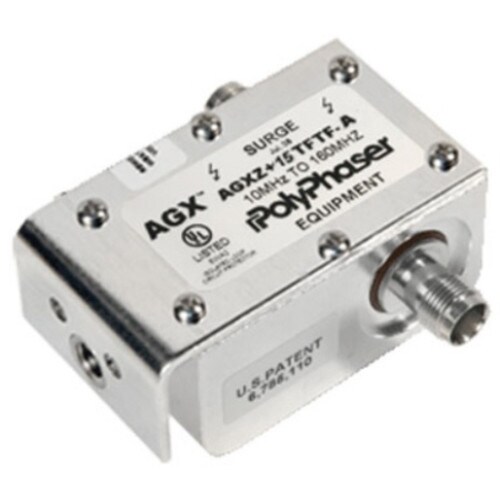

PolyPhaser DCto 50MHz High Voltage DC Pass Protector (AGXZ-15TFTFA)
- Brand: Polyphaser
- P\N: AGXZ-15TFTFA
- UPC: 888063077524
Do you have questions?
Please contact our experts for assistance.
Description
Description
PolyPhaser DC to 50MHz High Voltage DC Pass Protector (AGXZ-15TFTFA)
Key Features and Benefits
- Line Voltage: 15 VDC
- Frequency Range: 0-50 MHz
- Turn On Voltage: +/- 19 VDC
- RF Power: 1W
- Compliance Standards: CE
- Maximum Throughput Energy: 1000 µJ
The PolyPhaser DC to 50MHz High Voltage DC Pass Protector is a hybrid, multi-stage, multi-strike, fast response, high current capacity, +15Vdc pass coaxial lightning protector. It is configured with TNC female connectors for RF operating between 800 MHz to 2500MHz. This product is part of the GX series of superior lightning surge arrestors, providing coaxial surge protection for operating voltages of 6 V and RF Power (RMS) of 300 W.
Technical Specifications
- Product Weight: 2
- Brand Name: Polyphaser
- Frequency Range: 0-50 MHz
- Turn On Voltage: +/- 19 VDC
- RF Power: 1W
- Compliance Standards: CE
- Maximum Throughput Energy: 1000 µJ
Engineered for global environmental standards through IEC 60529 IP 67, the PolyPhaser DC Pass Protector provides hybrid circuit integration through SASD, MOV, and gas tube. This ensures the highest level of protection for your equipment from lightning surges and other electrical disturbances.
Why Choose the PolyPhaser DC Pass Protector?
When it comes to protecting your valuable equipment from lightning surges and other electrical disturbances, the PolyPhaser DC Pass Protector is the superior choice. Its high current capacity and fast response time ensure that your equipment is protected from damage, while its compliance with global environmental standards means it's a product you can trust.
Don't risk the safety of your equipment. Invest in the PolyPhaser DC Pass Protector today and experience the peace of mind that comes with knowing your equipment is protected.
