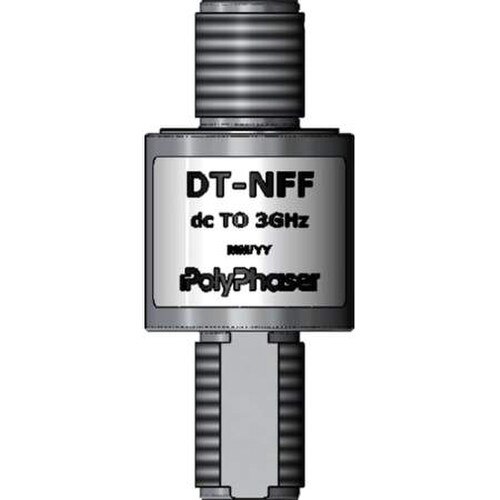

PolyPhaser Discrete Gas Tube Protector NF-NF (DT-NFF)

Bidirectional, DC pass RF coaxial protection for high power DC to 3.0GHz. The DT-NFF offers weatherproof coaxial lightning protection in a value-priced N-connector format. Meeting IEC 60529 IP 67 environmental standards, the In-line EMP surge protector by PolyPhaser provides superior protection with max RF power of 40W and 50ohms impedance.
Key Features:

• Line Voltage:+/- 60 VDC
• Frequency Range:0-3 GHz
• Turn On Voltage:+/- 150 VDC
• Nominal Insertion Loss:0.1 dB
• RF Power:750W
• Maximum Throughput Energy:500 µJ
