Raymarine EV-400 Sail Evolution Autopilot (T70161)
- Brand: Raymarine
- P\N: T70161
- UPC: 723193774359
Do you have questions?
Please contact our experts for assistance.
Description

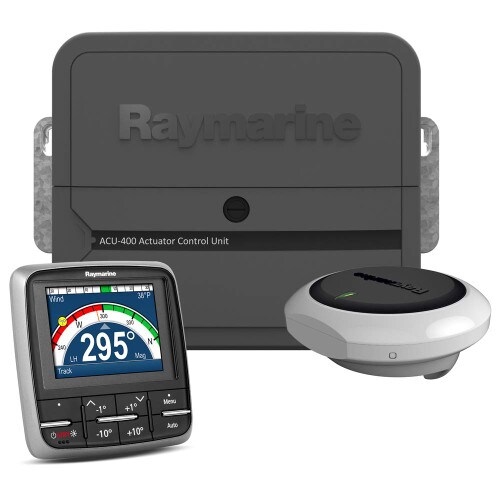

EV-400 Sail Evolution Autopilot, ;*Requires Type 2 or Type 3 Raymarine Hydraulic Pump. Heavy-duty, 30 Amp output for Type 3 Drives or ZF Sail Pod Drive Systems, Evolution Ai for superior performance, No calibration required, SeaTalk ;Network Compatible, ACU-400 auxiliary power to SeaTalk ;network. Includes p70 Autopilot Controller. Also included: EV-1 Sensor Core, p70 Autopilot Control Head, ACU-400 Actuator Control Unit (Includes the M81105 Rotary Rudder Reference), Evolution Cabling Kit, EV Unit O-Ring Pack (set of 2), Wall Mounting Bracket.
The EV Sensor Core: ;At the center of every Evolution system is the intelligent EV sensor core, a 9-axis sensor that monitors vessel motion in all three dimensions. The innovative EV sensor core combines advanced solid-state sensors with the Evolution autopilot processor into a single easy-toinstall housing. ;Mount the EV sensor core above or below decks, the rugged enclosure is fully sealed and built to IPX6 and IPX7 waterproofing and submersion standards. ;The EV-1 is designed for Evolution mechanical and hydraulic autopilot systems. SeaTalk ;networking enables a single cable connection for power and data to the Evolution ACU (actuator control unit) and extended SeaTalk ;and NMEA2000 networks.
p70 Autopilot Control Head: ;The p70 is a push-button operation controller designed primarily for sailboats. LightHouse user interface is simple and quick to use, Wide 160° viewing angles, Start up wizard helps you configure the pilot quickly and easily, Anti-reflective coating for improved visibility in bright sunlight, Low power - typically 132mA/1.6W - 27% less than ST70 at x4 measured brightness. Supported autopilot modes: Auto; Standby; Pattern; Track; Wind Vane; Power Steer and Jog Steer, Simple system and group dimming/illumination, Support for multiple data sources, SeaTalk/NMEA2000 and SeaTalk1 connectivity (no bridging required).
ACU-400 Autopilot Control Unit (ACU): ;The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type. ;Support Drive Units: ;Heavy-duty, 30 Amp output for Type 3 Drives or ZF Sail Pod Drive Systems. ;Evolution Cabling Kit: ;1 x SeaTalk ;Power Cable (0.4m), 1 x SeaTalk ;Backbone Cable (5m), 1 x SeaTalk ;Spur Cable (0.4m), 1 x SeaTalk ;5-way Connector Block, 2 x SeaTalk ;T-piece Connector, 2 x SeaTalk ;Terminator. ;
Key Features:
- Precision monitoring of heading, pitch, roll, and yaw allowing the autopilot to evolve instantly as sea conditions and vessel dynamics change
- Flexible installation options, mount above or below deck
- Simple SeaTalk ;connectivity to the control head and ACU, Solid state sensor technology delivers dynamic accuracy to within 2 degrees in all conditions
- Fast and reliable heading data for MARPA, radar overlay, and heading modes on Raymarine multifunction displays
