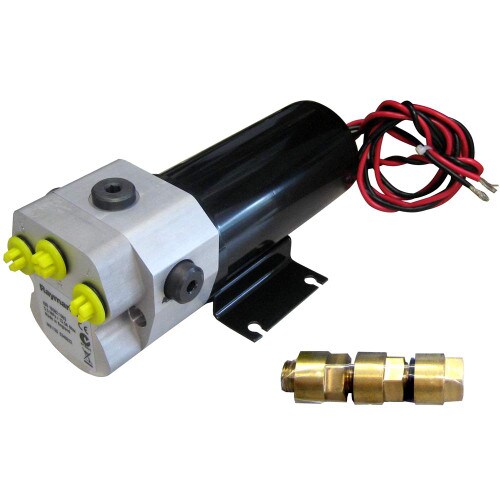

Raymarine Type 1 Pump 12V (M81120)

Type 1 Pump 12volt, reversing hydraulic pump for use with steering systems equipped with 4.914 cubic inch (80cc 230cc) hydraulic steering rams. The Type 1 hydraulic drive is compatible with both S1/S1G and S2/S2G corepacks. Use the table below to determine the Type 1 hydraulic drive's capacity when used with each corepack
Corepack Used S1 or S1G

• Ram Capacity 4.9in - 10.5in
• (80CC-172CC)
• Maximum Stall
• Pressure at 12V 750psi (50bar)
• (no load) 67in/min (1000cc/min)

• Ram Capacity 4.9in - 14in
• (80cc - 230cc)
• Maximum Stall
• Peak Flow Rate
• (no load) 67in/min (1000CC/min)
