RFS Rapid Fit 1-5/8" EIA, LCF78-50 (158EIA-LCF78-062)

  • Brand: RFS
  • P\N: 158EIA-LCF78-062
  • UPC: 888063750083
(0)No Reviews yet

Availability: In Stock

Your Price: $466.61

Do you have questions?

Please contact our experts for assistance.

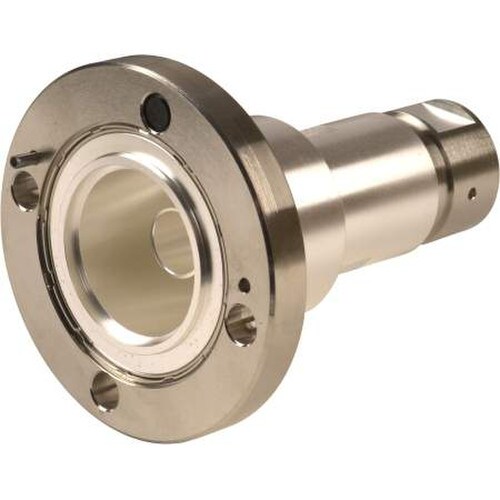

RFS 158EIA-LCF78-062 - Rapid Fit 1-5/8" EIA, LCF78-50

Key Features and Benefits

Designed by RFS, the Rapid Fit 1-5/8" EIA, LCF78-50 (15572962) is a high-quality connector designed for use with CELLFLEX® and other legacy industrial coaxial cables. These connectors are fully tested for mechanical and electrical compliance specifications, ensuring reliable and consistent performance.

  • Designed for legacy industrial coax cables
  • Low, consistent intermodulation performance for sensitivity
  • Consistent and repeatable low VSWR for performance
  • Waterproof according to IP 68
  • Long term operation in harsh environments

Technical Specifications

The Rapid Fit 1-5/8" EIA, LCF78-50 is designed with a straight RF connector body style and is part of the LCF78-50A-Series and RCF78-50A-Series. It features a 1-5/8" EIA connector interface and is a RAPID FITâ„¢ type. The connector is designed to fit LCF78-50 810921-001 810921-501.

  • Transmission Line Type: Coax cable
  • Cable Size: 7/8"
  • Cable Type: Foam dielectric
  • Model Series: LCF78-50A-Series, RCF78-50A-Series
  • Connector Interface: 1-5/8" EIA
  • Connector Type: RAPID FITâ„¢
  • RF Connector Body Style: Straight
  • Low PIM: No
  • Fits: LCF78-50 810921-001 810921-501
  • Nut Wrench: Front/back #22980/22980
  • Strip Tool: #471565 or 423014

The Rapid Fit 1-5/8" EIA, LCF78-50 is a lightweight connector, weighing only 2.06 lbs, making it easy to handle and install. Its single-piece design provides fast and easy installation, saving you time and effort.

With its low, consistent intermodulation performance, this connector ensures sensitivity in your connections. It also offers consistent and repeatable low VSWR for performance, ensuring that your connections are always at their best. Plus, it's waterproof according to IP 68, making it suitable for long-term operation in harsh environments.

When it comes to reliable and high-quality connectors, trust only RFS. Solid Signal is your best source for these cable connectors from Radio Frequency Systems.

Upgrade your connections today with the Rapid Fit 1-5/8" EIA, LCF78-50. Order now!
