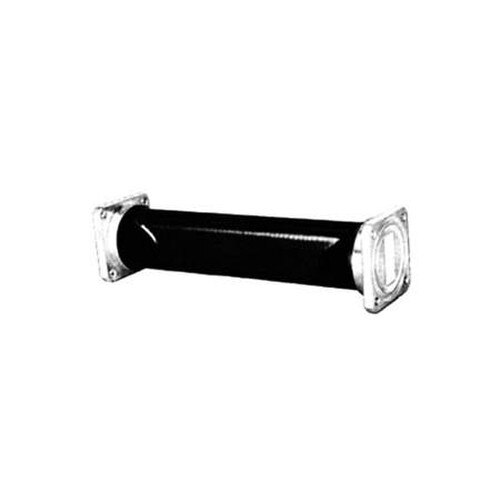

RFS 48-Inch Twist Flex Section for WR137 Waveguide (TF137-CC1-048I)

RFS' FlexTwist is engineered to provide exceptional low-loss electrical performance. It is also designed for fast, accurate installation, even in the most challenging environments.
The FlexTwist's core is created by helically winding a silver-coated brass strip to form a continuous, uniform rectangular tube. A solder fillet is then wound around the core, creating a seal that eliminates RF and pressure leakage. A protective neoprene jacket provides additional mechanical support.
Controlled construction of the core results in an ideal form that provides repeatable return-loss and insertion-loss performance during flexing. The flex twist features a neoprene jacket that provides environmental and mechanical protection. Each purchase includes a one-year manufacturer warranty and mounting hardware.
Key Features

• Designed to provide exceptional low-loss electrical performance
• Has a 1.03 VSWR
• Features CPR137G to CPR137G flange
• Neoprene jacket is highly resistant to oil and other fluids, as well as to ozone attack
• EIA Size: WR137
• Frequency Range: 5.9-7.750 GHz
