RFS N Male OMNI FIT Connector for 1/2in LCF12-50J/ICA12-50JPL (15566086)
- Brand: RFS
- P\N: 15566086
- UPC: 729198545925
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

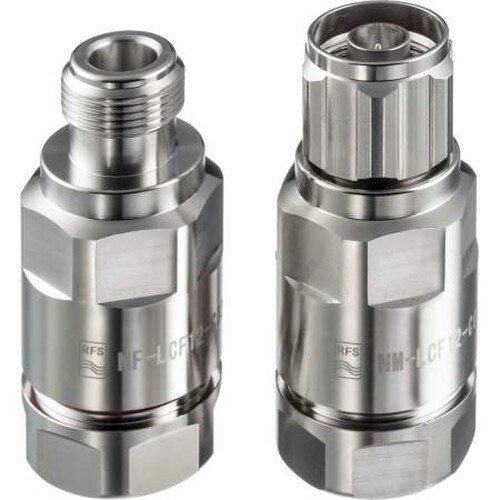

RFS N Male OMNI FIT Connector for 1/2in LCF12-50J/ICA12-50JPL (15566086)
Experience the superior performance of the RFS N Male OMNI FIT Connector, designed specifically for 1/2" LCF12-50 Series and ICA12-50 Series cables. This 2-piece connector is a testament to RFS's commitment to quality and innovation.
Key Features:
- Tri-metal silver body for enhanced durability and longevity
- Silver basket center pin for optimal signal transmission
- Clamp body for secure and reliable connection
Upgrade your cable connections today with the RFS N Male OMNI FIT Connector. Order now and experience the difference that quality makes.
Specifications
| Maximum VSWR | 1.06:1 |
| RF Connector | N Male |
| RF Impedance | 50 Ohms |
| RF Connector Body Style | Straight |
| Strip Tool | SKU 524506 |
| Body | Tri-Metal |
| Low PIM | No |
| Body Material | Tri-Metal Plated Brass |
| Fits | LCF12-50 Series, ICA12-50 Series |
| Frequency Range | 0-3700 MHz |
| Torque Wrench | N/A |
| Crimp Tool | N/A |
| Outer Contact Attachment Type |
