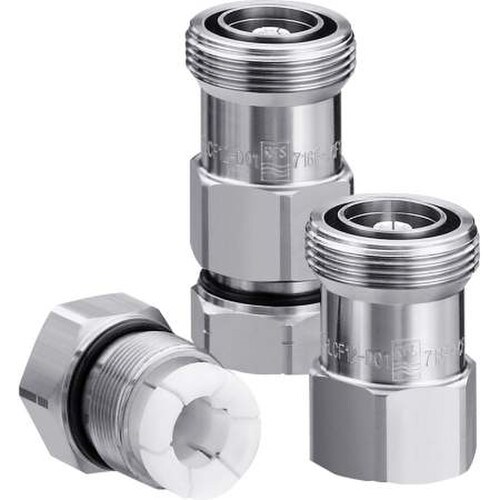

RFS 7-16 DIN Female OMNI FIT Premium Straight Connector for 1/2 in Coaxial Cable (716F-LCF12-D01)

RFS's 716F-LCF12-D01 7-16 DIN Female OMNI FIT premium straight connector pairs with 1/2 in coaxial cable. This 50 Ohm connector covers 3.7 GHz maximum frequency. It features a two-piece design with unique NiTin plating for corrosion resistance.
It is designed to provide the highest quality connector-cable interface while simplifying attachment. This 7-16 connector is the most rugged RF connection meeting all requirements even under the most severe environmental conditions. This connector features a polymer claw and 360 degree compression fit for sealing against the outer conductor and jacket.
A multifunctional, self-lubricating High-tech polymer assembly locks on cable corrugation and avoids electrochemical potential. This connector meets RoHS and IP68 standards, ensuring watertight sealing.

Compatible Series: LCF12-50, ICA12-50, and RCF12-50
Cable Type: Foam Dielectric
Inner Contact Attachment: Basket

RFS OMNI FIT 7/16 DIN Female connector for 1/2" coaxial cable. 2-pc design. Fits both copper and aluminum cable. Ultra High PIM performance.

Key Features

RF Connector: 7/16 DIN Female

RF Connector Body Style: Straight

RF Impedance: 50 Ohms

Outer Contact Attachment Type: Clamp

Low PIM: Yes

Frequency Range: 0-3.7 GHz

Fits: LCF12-50

Mfg. Warranty: 5 Years
