Rohn- ROHN 45G Standard 10-ft Tower Section (45G)

Rohn - ROHN 45G Standard 10 Foot Tower Section

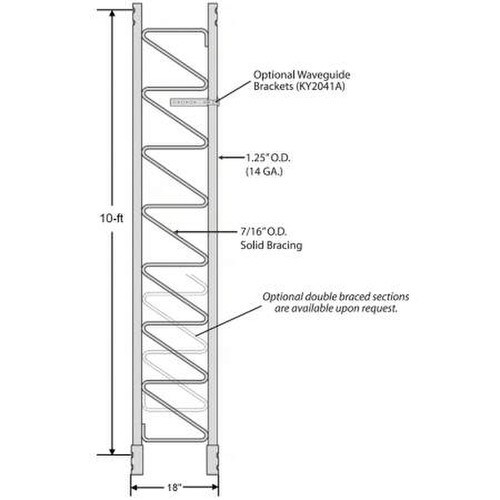

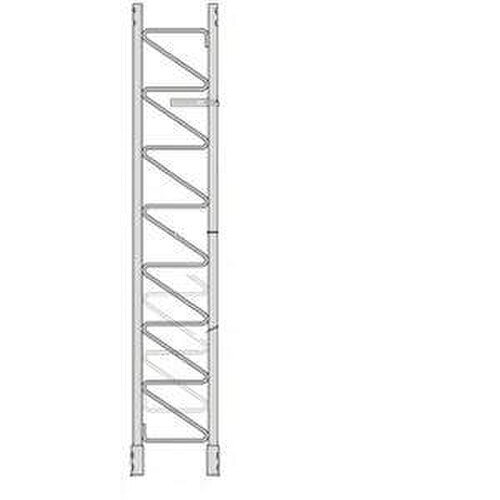

ROHN's R-45G standard 10 foot tower section is the basic building block of one of the world's most well-known medium weight guyed tower models, the Rohn 45G. The R-45G uses double-bolted joints proven to be the best method of joining tower sections for sturdiness and stability. Every Rohn R-45G section is completely hot-dip galvanized after fabrication and features a 18 in face and 7/16 inch solid serpentine zig-zag bracing. Each 10 foot section contains all required nuts and bolts inside one leg.

The 45G is a light weight tower, available with tubular or solid round legs with solid braces. The tower sections are most often guyed, but can also be used in bracketed and self-supporting applications. Standard sections are 10 feet in length, but are also available in a 20 foot length when ordering solid sections. This tower model has several top options, as well as a variety of tower accessories. The 45G has several base options, including: base cast in concrete, base plate with anchor bolts and also a hinged base. This tower is a true multi-use structure.
