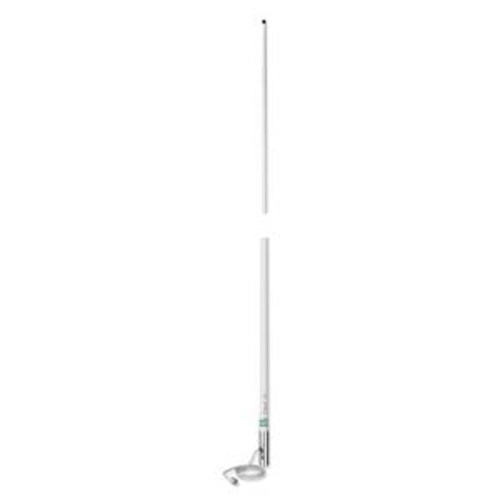

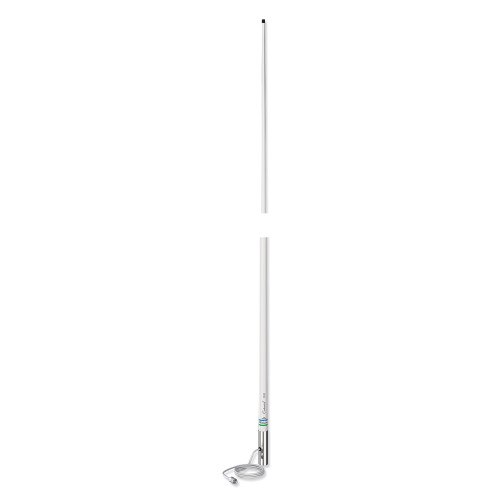

Shakespeare 5101 8' Classic VHF Antenna w/15' Cable (5101)

Shakespeare 5101 8' Classic VHF Antenna with 15' Cable

Key Features and Benefits

Experience the standard of excellence in an economical antenna with the Shakespeare 5101. This 8' antenna is equipped with high-end features, offering not only superior performance but also exceptional value. Its brass element and smooth, high gloss, polyurethane finish ensure durability and longevity, without the risk of yellowing in the sun.

• Brass and copper elements for enhanced durability
• Chrome-plated brass ferrule with standard 1"-14 thread
• Includes 15' RG-58 cable and a PL-259 connector
• Suggested mount: Shakespeare Style 4187 Ratchet Mount, or use a Shakespeare Style 410-R Mounting Kit plus a Style 4008 Extension Mast to form a 16' antenna system
• Shakespeare Limited Warranty: 2 years

Technical Specifications

• Frequency: VHF Marine Band
• Bandwidth: (within 2.0 1 SWR): 5 MHz
• SWR: 1.5:1 at 156.8 MHz
• Impedance: (Ohms): 50
• Gain: 6 dB
• Max. Input (Watts): 50
• DC Ground: YES - however, the antenna will read "open circuit" when tested with ohmeter.
• Termination: 15' RG-58 cable
• Height (feet): 8'
• Polarization: Vertical
• Radiation pattern: Omni - directional

The Shakespeare 5101 is designed to deliver a seamless and reliable connection, ensuring you stay connected even in the most challenging conditions. Its robust construction and high-quality materials make it a reliable choice for any marine communication needs.

With its easy-to-install design and superior performance, the Shakespeare 5101 is the perfect choice for those seeking a high-quality, economical antenna. Its impressive features and technical specifications make it a standout choice in its category.

Experience the difference in quality and performance with the Shakespeare 5101 8' Classic VHF Antenna. Don't compromise on your communication needs, choose Shakespeare for reliability and excellence.

Upgrade your marine communication system today with the Shakespeare 5101 8' Classic VHF Antenna. Order now and experience the difference!
