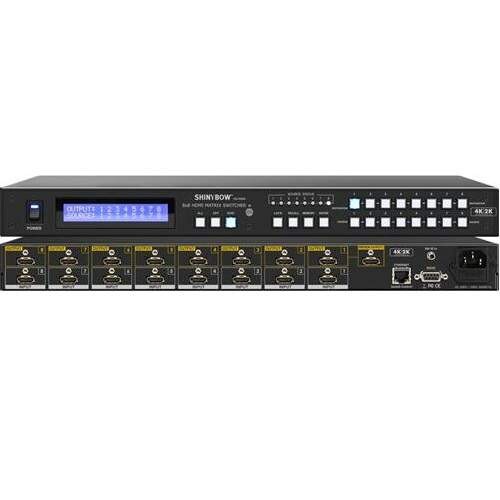

ShinyBow 8x8 HDMI Matrix Routing Switch With Full EDID (SB-5688KP)

The SB-5688Kp is based on HDMI standards and supports full resolution HDMI video with seven embedded EDID. High Definition Digital signals can be selected and distributed to any of the eight inputs to the 8+1 preview outputs. The switcher is certified as being fully CEC and HDCP 1.3 compliant with HDMI 1.4a, 4K2K@30Hz, DVI 1.0, 3D formats and a wide frequency range of 25MHz ~ 340 MHz so there is no signal degradation. Full HD supports UXGA/WUXGA/DVI 1920x1200 resolutions to any HD display. The EDID management can be selected between seven different modes. Control is provided via front panel push buttons, IR remote, RS- 232 or TCP/IP (not a web-browser). A RS-232 Windows GUI interface is provided for matrix routing control (Windows only).

Key Features

Eight HDMI source devices matrix switched to eight HDMI+ 1 preview output destinations

HDMI digital video w/ embedded HDCP and DVI formats and CEC/HDCP 1.3 compliant

Worldwide control EDID modes for HDMI full 4K2K (24/30Hz) HD video resolutions

Wide frequency range of 25MHz ~ 340MHz, Support HDMI 4K2K, 1.4a 3D formats

Wide range of HD resolutions from PC XGA to WUXGA 1920x1200 and HDTV/DTV HDMI resolutions 480i/480p, 576i/576p, 720p, 1080i/p & 4K2K (24/30Hz)

Compatible with all HDMI source devices, PC monitors, Plasma HD displayd, HDTV and audio receivers or audio amplifiers

Digital video TMDS formats resolutions up to 4K2K with Deep color 36-bit

Using the build-in booster, each HDMI Output port is capable of driving cable lengths for 1080p up to 98 feet (30M) & 4K2K up to 66 feet (20M)

Digital Audio Support: Dolby TrueHD, Dolby Digital, Dolby Digital Plug/ex, DTS, DTS-HD, DTS-HD Master, DTS-EX PCM, PCM2, LPCM2

Supports world wide nine control function keys: Full function front panel controls: ARC/AUX/ALL/OFF/EDID/LOCK/RECALL/MEMORY/ENTER
