Sinclair 138-174 MHz HD 2 Dipole Antenna (SD212HF2P4SNMD00)

Sinclair 138-174 MHz HD 2 Dipole Antenna

Key Features and Benefits

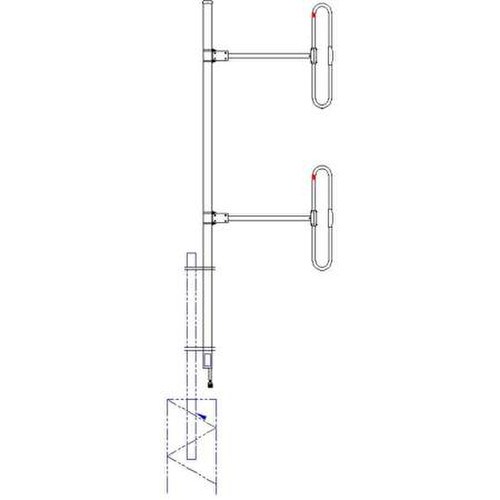

Introducing the Sinclair 138-174 MHz HD 2 Dipole Antenna, a product of Sinclair Technologies. This rugged heavy-duty 2-bay exposed dipole antenna is designed for applications where moderate gain is required. It's a premium-quality antenna that is well suited to public safety applications.

• Specific Frequency: 138-174 MHz
• Offset Antenna Pattern
• Gain: 5.5 dBd and 7.6 dBi
• Vertical Polarization
• Vertical Beamwidth: 34 degrees
• Horizontal Beamwidth: 210 degrees
• Maximum VSWR: 1.5:1
• Maximum Power: 300 W
• Lightning Protection: DC Ground
• RF Connectors: N Male
• Connector Placement: Pigtail
• Maximum Rated Wind Velocity: 185 mile/h
• Jumper is Included

Technical Specifications

The Sinclair 138-174 MHz HD 2 Dipole Antenna is designed with precision and attention to detail. It stands tall at 120 inches, with a length of 4.75 inches and a width of 24.62 inches. The antenna is equipped with N Male RF Connectors and a pigtail connector placement. It also features DC Ground Lightning Protection, ensuring the safety and longevity of the device. The antenna can withstand a maximum rated wind velocity of 185 miles per hour, making it a reliable choice for outdoor installations.

Experience the Sinclair Difference

With Sinclair Technologies, you are guaranteed a product that combines innovation, quality, and durability. The Sinclair 138-174 MHz HD 2 Dipole Antenna is no exception. It's designed to deliver optimal performance, ensuring clear and reliable communication when it matters most.

Don't compromise on your communication needs. Experience the difference with the Sinclair 138-174 MHz HD 2 Dipole Antenna. Order now and elevate your communication experience.
