Sinclair - 138-174 MHz Pass Reject Duplexer (Q2330E)
- Brand: Sinclair Technologies
- P\N: Q2330E
- UPC: 729198114619
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

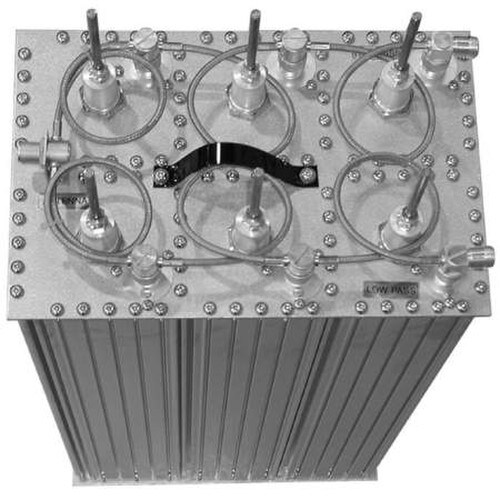

Sinclair - 138-174 MHz Pass Reject Duplexer (Q2330E)
SINCLAIR's Q2330E 138 – 174 MHz duplexer. Pass-reject type. 6 cavity. 350 W. 0.5 MHz minimum separation 1.4 dB loss. 85 dB isolation. *TESSCO tuned or field tuned
• Six-cavity provides 85 dB isolation
• Res-Lok design reduces inter-cavity cabling and losses
• Provides up to 85 dB isolation at frequency separation of 500 KHz
Specifications
| Electrical | |
|---|---|
| average input power max (W) | 350 |
| cavity electrical length | 1/4 wave |
| connectors | N-Female |
| frequency range (MHz) | 138 to 174 |
| impedance (Ω) | 50 |
| insertion loss typ rx to ant | 1.4 |
| number of cavities rx side | 3 |
| number of cavities tx side | 3 |
| Mechanical | |
|---|---|
| actual shipping weight (lbs) | 50 |
| coupling loops material | copper |
| depth (in) | 30.3 |
| end plates material | aluminum |
| finish | chromate conversion |
| inner conductor material | silver plated brass |
| length height (in) | 8.37 |
| mounting configurations | 19 inch rack |
| outer conductor material | aluminum |
| shipping dimensions (in) | 12x16x37 |
| tuning rod material | invar |
| width (in) | 19 |
| Environmental | |
|---|---|
| temperature range (°C) | -40 to 60 |
