Sinclair SD210-SF2P2SNM 2dBi Exposed Dipole Antenna (SD210-SF2P2SNM)
- Brand: Sinclair Technologies
- P\N: SD210-SF2P2SNM
- UPC: 729198801908
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

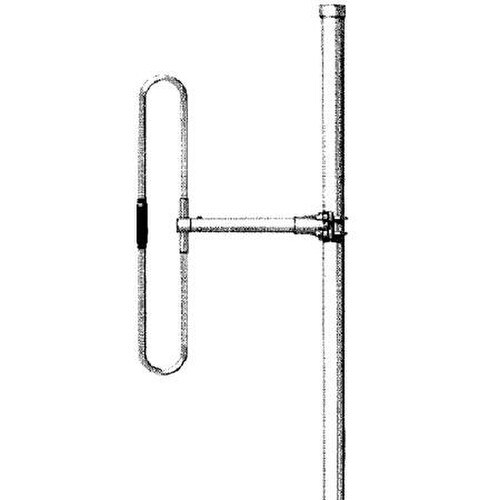

Sinclair SD210-SF2P2SNM 2dBi Exposed Dipole Antenna
SINCLAIR's SD210-SF2P2SNM 138 – 174 MHz single dipole array for side mounting. 2 dB bi-directional gain, 300 W. Includes harness with N Male termination. Order clamps separately. 1/2 wave spacing
Specifications
| Item Width | 3 inch |
| Item Height | 60 inch |
| Item Weight | 10 lbs. |
| Item Length | 23 inch |
| Gain dBd | 2 dBd |
| Gain dBi (dBi) | 4.1 dBi |
| Horizontal Beamwidth | 210 deg |
| Jumper Included | Yes |
| Maximum Power (W) | 200 |
| RF Connectors | N Male |
| Polarization | Vertical |
| Specific Frequency | 138-174 MHz |
| Vertical Beamwidth (Deg) | 68 |
| Maximum Rated Wind Velocity | 175 mile/h |
| Maximum VSWR | 1.5:1 |
| Tuned Frequency (MHz) | N/A |
| Connector Placement | Pigtail |
| Antenna Pattern | Bidirectional |
| Lightning Protection | DC Ground |
| Frequency Band | VHF |
