Sinclair- SD210-SF2PASNM 138-174 MHz 2.5dB Exposed Dipole Antenna (SD210-SF2PASNM)
- Brand: Sinclair Technologies
- P\N: SD210-SF2PASNM
- UPC: 729198591397
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

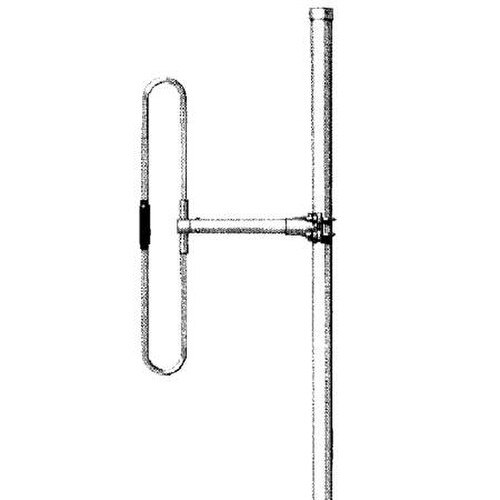

Sinclair SD210-SF2PASNM 138-174 MHz 2.5dB Exposed Dipole Antenna
SINCLAIR's SD210-SF2PASNM 138 – 174 MHz single dipole antenna. 2 – 2.5 dB offset gain. 200 W. Includes harness with N Male termination. Order mounting clamps separately.
Specifications
| Item Width | 3 inch |
| Item Height | 60 inch |
| Item Weight | 8.3 lbs. |
| Item Length | 23 inch |
| Gain dBd | 2.5 dBd |
| Gain dBi (dBi) | 4.6 dBi |
| Horizontal Beamwidth | 210 deg |
| Jumper Included | Yes |
| Maximum Power (W) | 200 |
| RF Connectors | N Male |
| Polarization | Vertical |
| Specific Frequency | 138-174 MHz |
| Vertical Beamwidth (Deg) | 68 |
| Maximum Rated Wind Velocity | 175 mile/h |
| Maximum VSWR | 1.5:1 |
| Tuned Frequency (MHz) | 138-174 |
| Lightning Protection | DC Ground |
| Frequency Band | VHF |
