Sinclair SD224-SF3PASNM 6dB 4 Element Dipole Antenna (SD224-SF3PASNM)
- Brand: Sinclair Technologies
- P\N: SD224-SF3PASNM
- UPC: 729198573652
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

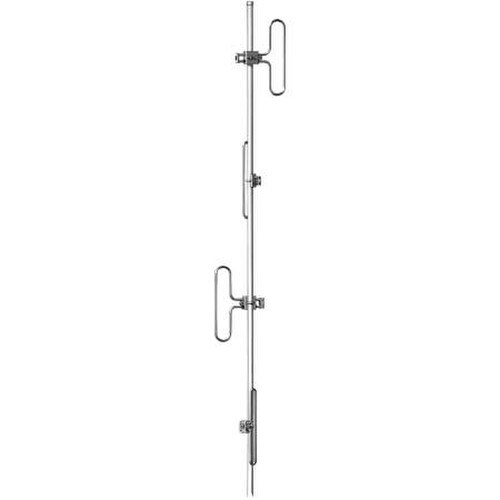

Sinclair SD224-SF3PASNM 6dB 4 Element Dipole Antenna
SINCLAIR's SD224-SF3PASNM 142 – 152 MHz four dipole exposed array antenna. 6 dB omni / 9 dB offset pattern. Includes harness with N Male termination and mounting hardware.
Specifications
| Item Width | 4.5 inch |
| Item Height | 216 inch |
| Item Weight | 35 lbs. |
| Item Length | 14 inch |
| Gain dBd | 6 dBd, 9 dBd |
| Gain dBi (dBi) | 8.1 dBi, 11.1 dBi |
| Horizontal Beamwidth | 360 deg, 170 deg |
| Jumper Included | Yes |
| Maximum Power (W) | 300 |
| RF Connectors | N Male |
| Polarization | Vertical |
| Specific Frequency | 142-152 MHz |
| Vertical Beamwidth (Deg) | 16 |
| Maximum Rated Wind Velocity | 105 mile/h |
| Maximum VSWR | 1.5:1 |
| Tuned Frequency (MHz) | 142-153 |
| Connector Placement | Pigtail |
| Antenna Pattern | Adjustable |
| Lightning Protection | DC Ground |
| Frequency Band | VHF |
