Televes Power Supply for Antennas and Amplifiers (550104)
- Brand: Televes
- P\N: 550104
Live Chat
Contact Us
Description

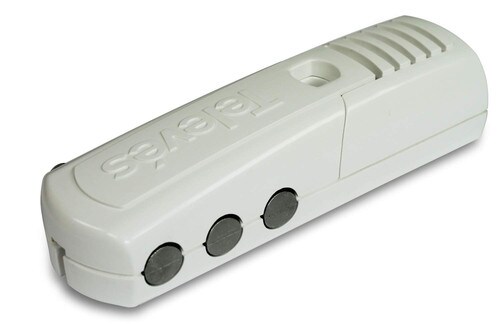

Televes 12V Power Supply for Antennas and Amplifiers (550104)
Best For
Powering compatible Televes mast amplifiers or BOSS antenna systems over the coaxial line while passing the TV signal.
Why Choose the Televes 550104?

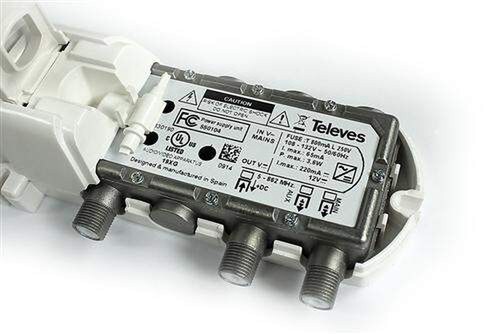

This compact switched-mode supply provides 12V at 220 mA and has two RF outputs for compatible antenna distribution installations.
Key Benefits
- 12V, 220 mA output
- Feeds DC through input coax while passing TV signal
- Two outputs
- F connectors
- UL certified with U.S. plug as stated in existing information
- Wall-mount capable

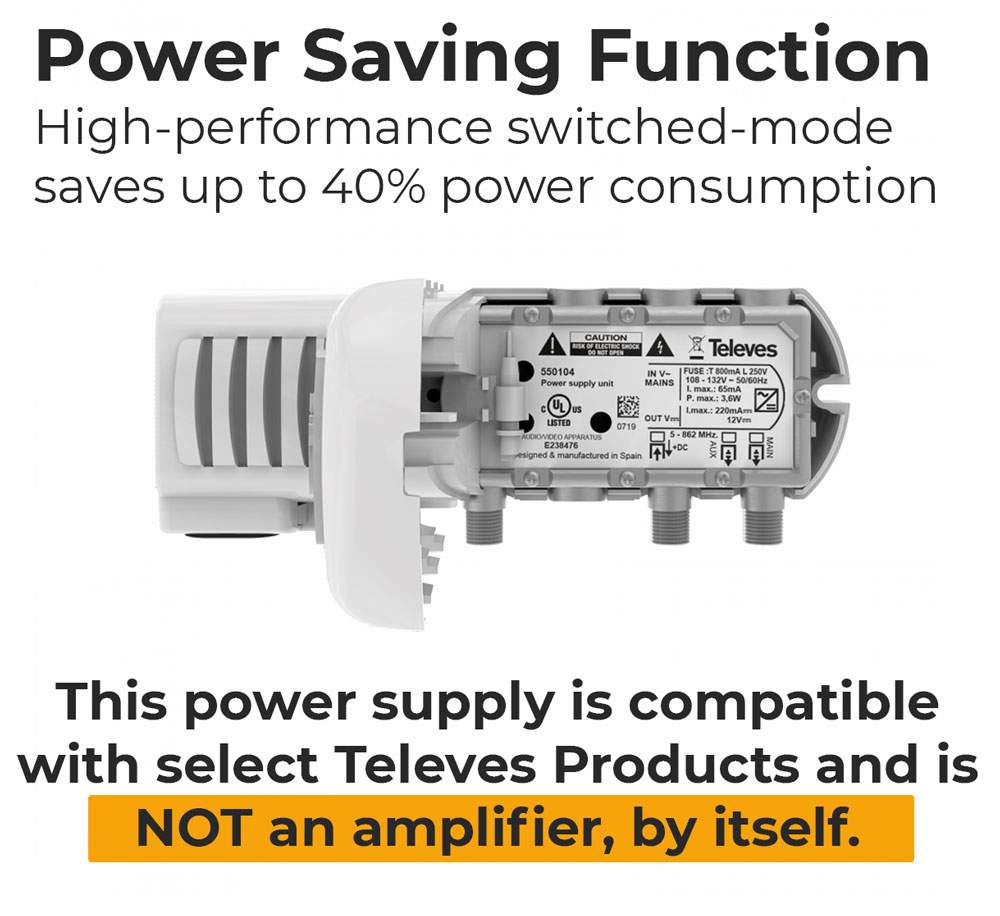

- Switched-mode design described as reducing power consumption
Who Should Buy the 550104?
OTA installers using a compatible powered Televes antenna, BOSS system, or mast amplifier and who have confirmed voltage/current and coax-power requirements.
What's Included
- Televes power supply
- Instruction manual
Specifications
| Plug type | US | ||
|---|---|---|---|
| Number of outputs | 2 | ||
| Frequency range | MHz |
| |
| Insertion losses: 1 output | dB |
| |
| Insertion losses: 2 outputs | dB |
| |
| Output voltage | Vdc | 12 | |
| Max. output current | A | 220 | |
| Input voltage | Vac | 108 ... 132 | |
| Mains frequency | 50 Hz / 60 Hz | ||
| Max. current | mA | 65 | |
| Max. power consumption | W | 3.6 | |
| Operating temperature | °F | 14 ... 113 | |
| Protection index | 20 |
