Telewave 470-550 MHz and 6-9 dBd4-Element Dipole Array Antenna (ANT500D6-9)

  • Brand: Telewave Inc.
  • P\N: ANT500D6-9
  • UPC: 729198630430
(0)No Reviews yet

Availability: Backorder


Your Price: $2,426.00

Do you have questions?

Please contact our experts for assistance.

Description

Description

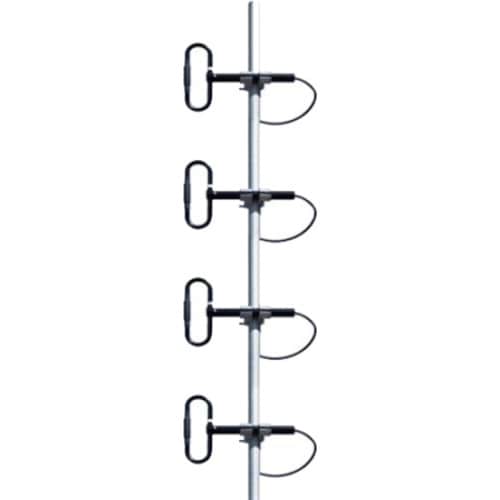

Telewave 470-550 MHz 4-Element Dipole Array antenna. The Telewave ANT500D series consists of single, dual, and 4-element dipole array antennas with a precision phasing harness for optimum performance. The antenna horizontal pattern is field adjustable, for any current or future coverage requirements. The wide bandwidth and high efficiency of these antennas make them ideal for many applications, including trunking, business, public safety, and government communication. Item Height 65 inches, and Item Length 11 inches.
Key Features
  • Each dipole element is constructed with 6061-T6 aluminum, and welded at the base for maximum strength. Each antenna is also completely sealed with our high-tech Txylan coating, which resists water and ice buildup, and provides exceptional protection from corrosive gases, UV radiation, salt spray, acid rain and windblown abrasives.
  • 470-550 MHz Specific Frequency, Adjustable Antenna Pattern, 18 deg Vertical Beamwidth, 1.5:1 Maximum VSWR, 500 W Maximum Power, DC Ground Lightning Protection, N Male RF Connectors, and 175 mile/h Maximum Rated Wind Velocity.
  • All components are at DC ground potential for lightning protection. Each dipole element includes a heavy-duty custom clamp set for mounting to a 1.5"-2.5" diameter galvanized steel support pipe or tower leg.
  • Up to 15 degrees of electrical uptilt or downtilt may be specified for D3 or D6-9 models. Desired tilt angle must be included on the order, and consultation with our antenna engineering staff is requested.
