Description

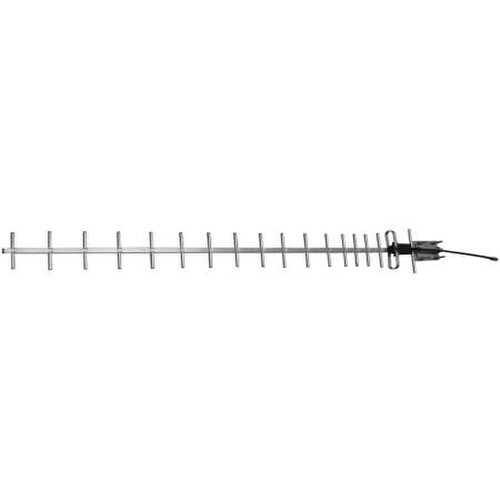

TerraWave 824-960 MHz 15dBi Enclosed Yagi Antenna (T09150Y11206T)
Experience superior signal strength and enhanced communication with the TerraWave Enclosed Yagi Antenna. This high-performance antenna operates in the 824-960 MHz frequency range, making it the perfect solution for a variety of applications.
Key Features:
- Enclosed yagi antenna
- Frequency: 824-960 MHz
- Used for RFID, GSM, CDMA, and more
- dBi/Max. Watts: 15/50
- Comes with an articulating mount and 12" pigtail with N Jack (female) connection
Wide Range of Applications
This directional yagi antenna is ideal for applications in the 900 MHz frequency. It is perfect for radio frequency identification (RFID) applications, cellular systems, and global system for mobile (GSM) communications. It also works seamlessly with code-division multiple access systems (CDMA) applications, multipoint applications, and wireless video links.
High Performance
With a dBi/Max. Watts of 15/50, the TerraWave Yagi Antenna ensures high performance and superior signal strength. This makes it a reliable choice for all your communication needs.
Why Choose TerraWave?
TerraWave is a trusted name in the industry, known for its high-quality products and innovative solutions. When you choose TerraWave, you choose reliability, durability, and performance.
Experience the difference with the TerraWave 824-960 MHz 15dBi Enclosed Yagi Antenna. Solid Signal is your best source for this high-performance yagi antenna from TerraWave.
Upgrade your communication system today. Experience superior signal strength and enhanced performance with the TerraWave Enclosed Yagi Antenna. Order now!
Specifications
| Item Width | 19.2 in |
| Item Height | 7.6 in |
| Item Weight | 1.45 lb |
| Gain dBi (dBi) | 15 dBi |
| Gain dBd | 12.9 dBd |
| Item Length | 52 in |
| Horizontal Beamwidth | 28 deg |
| Jumper Included | Yes |
| Maximum Power (W) | 50 |
| Polarization | Linear |
| RF Connectors | N Female |
| Vertical Beamwidth (Deg) | 28 |
| Specific Frequency | 824-960 MHz |
| Maximum Rated Wind Velocity | 135 mile/h |
| Maximum VSWR | 1.5:1 |
| Minimum Front Back Ratio | 18 dB |
| Connector Placement | Pigtail |
| Frequency Band | Cellular |
