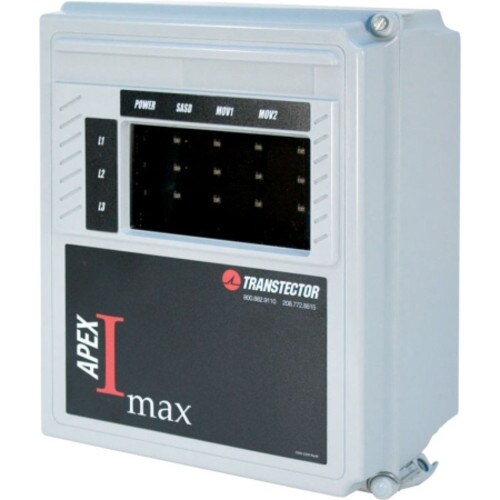

Transtector Systems 120-240 V Panel Surge Protection APEX IMAX (1101-808-MM-1)

Transtector Systems 120-240 V Panel Surge Protection APEX IMAX (1101-808-MM-1)

Key Features and Benefits

Protect your 120VAC power configurations with the Transtector Systems APEX IMAX surge protection device. This robust device is designed to safeguard your electrical systems from damaging power surges, ensuring the longevity and reliability of your equipment.

• Outdoor surge protection device for 120VAC power configurations
• Visual and remote status monitoring capabilities
• Constructed with a durable fiberglass composite, UL Type 4 enclosure
• Features Transtector's patented ASAT assembly construction
• Combines silicon avalanche suppressor diode (SASD) and metal oxide varistor (MOV) technologies for optimal protection

Technical Specifications

The APEX IMAX surge protector is designed with a card edge connector system, allowing each surge element to connect to the monitoring board. This feature enables you to track the functional health of the device through visual and relay alarm connection point features. The Annunciation contacts are conveniently located on the interior main board assembly and are multiplexed for ease of use.

The surge elements are housed inside 94V0 flame-rated plastic housings, ensuring safety and durability. The APEX IMAX utilizes a combination of SASD and MOV technologies, providing low voltage protection levels at high-induced surge currents. This effective abnormal over-voltage fault current fail-safe mode ensures your electrical systems are always protected.

The surge protector couples SASD and MOV elements with built-in disconnect elements, further enhancing its protective capabilities. This device is made with Transtector's ASAT patented assembly construction, ensuring quality and reliability.

Additional Information

Solid Signal is your No. 1 source for this AC surge protector from Transtector Systems. Trust in the Transtector Systems APEX IMAX to provide the surge protection your electrical systems need.

Don't leave your electrical systems vulnerable to damaging power surges. Invest in the Transtector Systems APEX IMAX surge protector today and ensure the longevity and reliability of your equipment. Order now!

Special Order. Non-Cancellable and Non-Returnable
