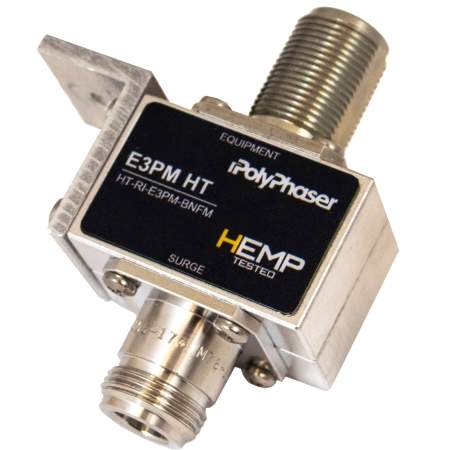

Transtector Systems Surge Protector for Radio and Antenna (HT-RI-E3PM-BNFM)

This device is a surge protector/lightning surge arrestor for outdoor radio and antenna installations. It helps protect your equipment from electromagnetic pulse (EMP) or power surges caused by lightning and other electrical changes. This RF surge protection device is also high-altitude EMP (HEMP) tested. It is designed to pass 10 MHz to 700 MHz while suppressing DC surge. Solid Signal is your source for this N F/F bulkhead coaxial RF surge protector from Transtector Systems.

Key Features:

• Surge protector for radio/antenna installations
• Operating Range: 10MHz-700MHz
• Also supports a power handling maximum of 500 Watts
• Blocking cap and gas tube technology for max protection
• RoHS compliant

Tech Specs:

• Impedance: 50 Ohm
• Connector In Series: N
• Connector In Gender: Female
• Connector Out Series: N
• Connector Out Gender: Female
• Minimum Frequency: 10 MHz
• Maximum Frequency: 700 MHz
• Maximum Input Power: 500 Watts
• Direction: Directional
• Throughput Energy: 20 uJ
