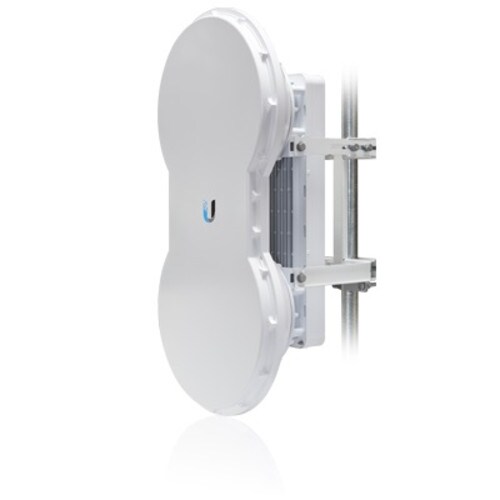

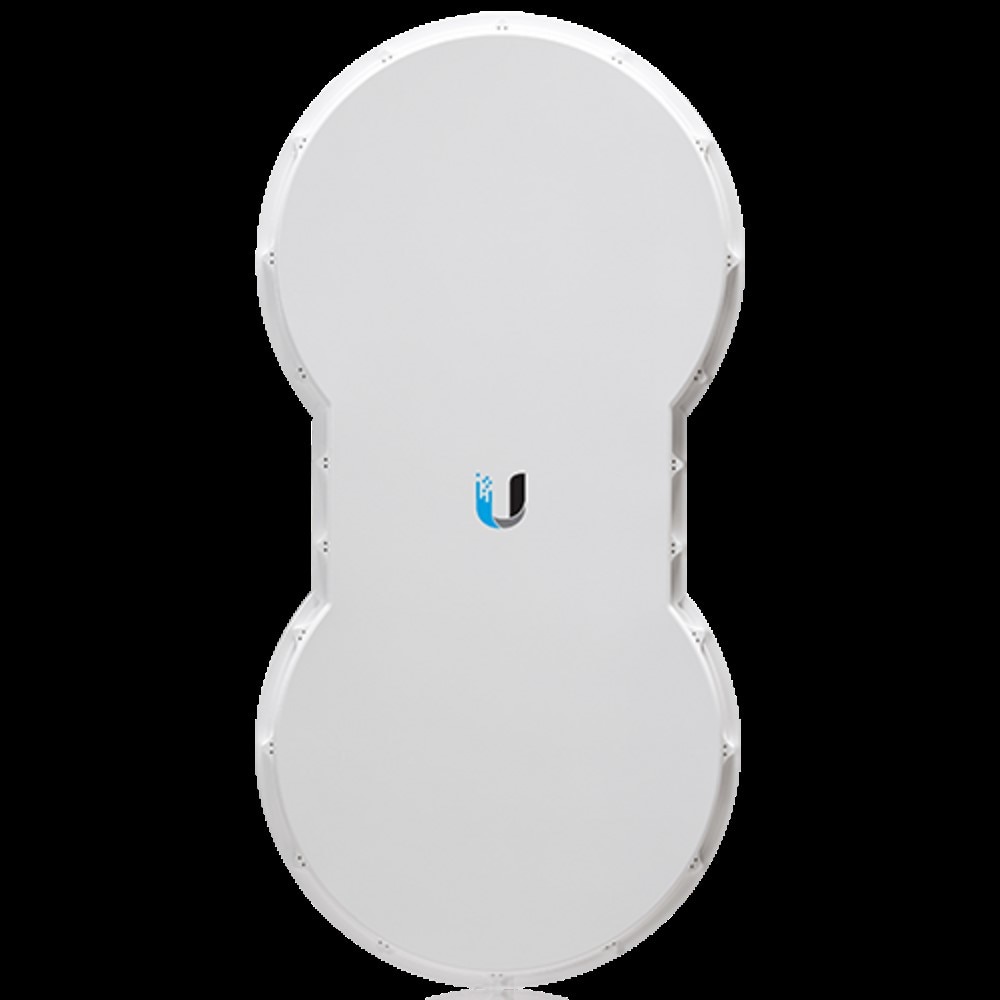

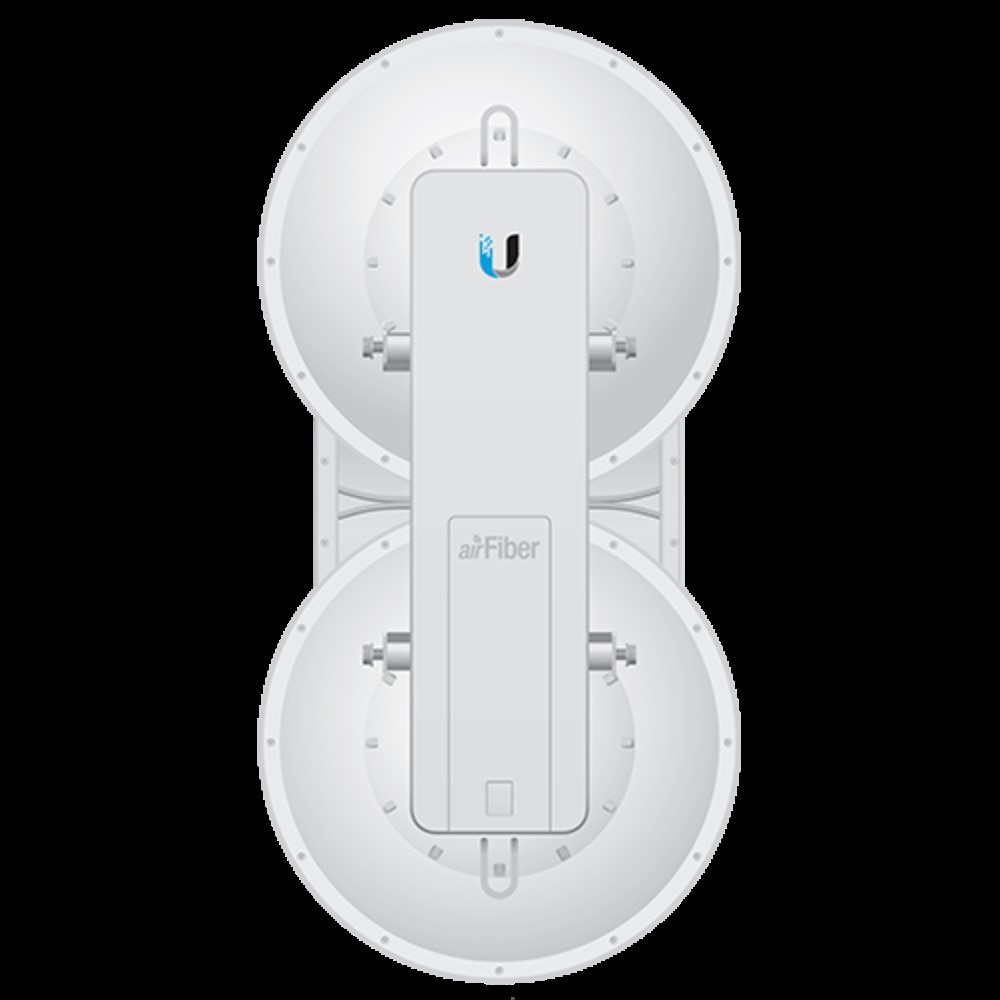

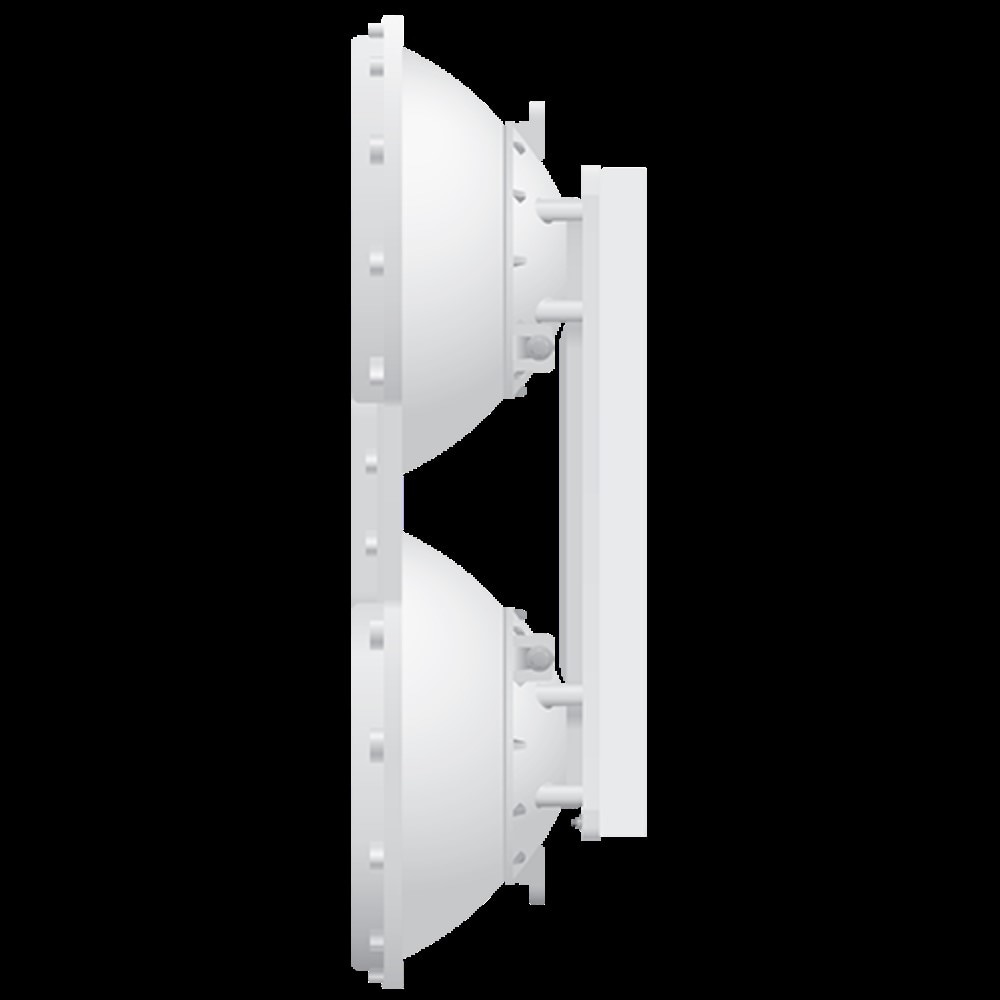

Ubiquiti UISP airFiber 5 GHz High-Band Bridge (AF-5)

  • Brand: Ubiquiti Networks
  • P\N: AF-5
  • UPC: 636676644714
(0)No Reviews yet

Availability: Backorder


Your Price: $1,235.00

Do you have questions?

Please contact our experts for assistance.

Description

Ubiquiti UISP airFiber 5 GHz High-Band Bridge (AF-5)

Experience the future of wireless technology with the UBIQUITI AF-5 Airfiber-5 Wireless PTP Link. This revolutionary product from Ubiquiti Networks is designed to deliver superior wireless gigabit+ performance, low latency, and long range. Ideal for carrier backhaul, enterprise use, or public safety applications, the AF-5 ushers in a new era of price-disruptive wireless technology.

Key Features

  • Superior wireless gigabit+ performance
  • Low latency for efficient data transfer
  • Long range for extended coverage
  • Compact and highly efficient form factor

The AF-5 operates on an unlicensed 5GHZ frequency, providing a reliable and efficient wireless connection. Its compact form factor ensures it fits seamlessly into any setup, while its advanced technology ensures optimal performance.

  • Operates on unlicensed 5GHZ frequency
  • Compact and efficient form factor

Experience the Ubiquiti Networks Difference

Ubiquiti Networks is renowned for its innovative and high-quality products. The AF-5 is no exception, offering a truly revolutionary wireless platform that delivers exceptional performance and value.

Whether you're a carrier looking for efficient backhaul solutions, an enterprise seeking to enhance building-to-building connectivity, or a public safety organization requiring reliable wireless links, the AF-5 is the perfect solution. Its superior gigabit+ performance, low latency, and long range make it a standout choice for any wireless needs.

Don't settle for less. Experience the power and performance of the UBIQUITI AF-5 Airfiber-5 Wireless PTP Link today. Upgrade your wireless connectivity now!

What's in the Box:

  • airFiber AF-5
  • I-Bracket
  • Upper Mount Bracket with Elevation Rod
  • Lower Mount Bracket
  • Pole Clamps (Qty. 2)
  • M10x150 Carriage Bolts (Qty. 4)
  • M10x100 Carriage Bolts (Qty. 2)
  • Serrated Flange Bolts (Qty. 4)
  • Stabilizer Brackets (Qty. 2)
  • Serrated Flange Nuts (Qty. 6)
  • Zip Ties (Qty. 2)
  • Gigabit PoE (50V, 1.2A)
  • Power Cord
Interested in learning more about this product?Check out our blog!

Features

Compact, wireless point-to-point mid-band bridge with a 1.2+ Gbps throughput rate.

5 GHz, mid-band 100+ km link range

1.2+ Gbps throughput

Separate integrated TX and RX antennas

Integrated GPS sync

1+ Mpps processing

Note. This product should be purchased in pairs in order to form links.

Specifications

Mechanical
Dimensions938.4 x 468.4 x 281.4 mm (36.9 x 18.4 x 11.1")
Weight16 kg (35.3 lb)

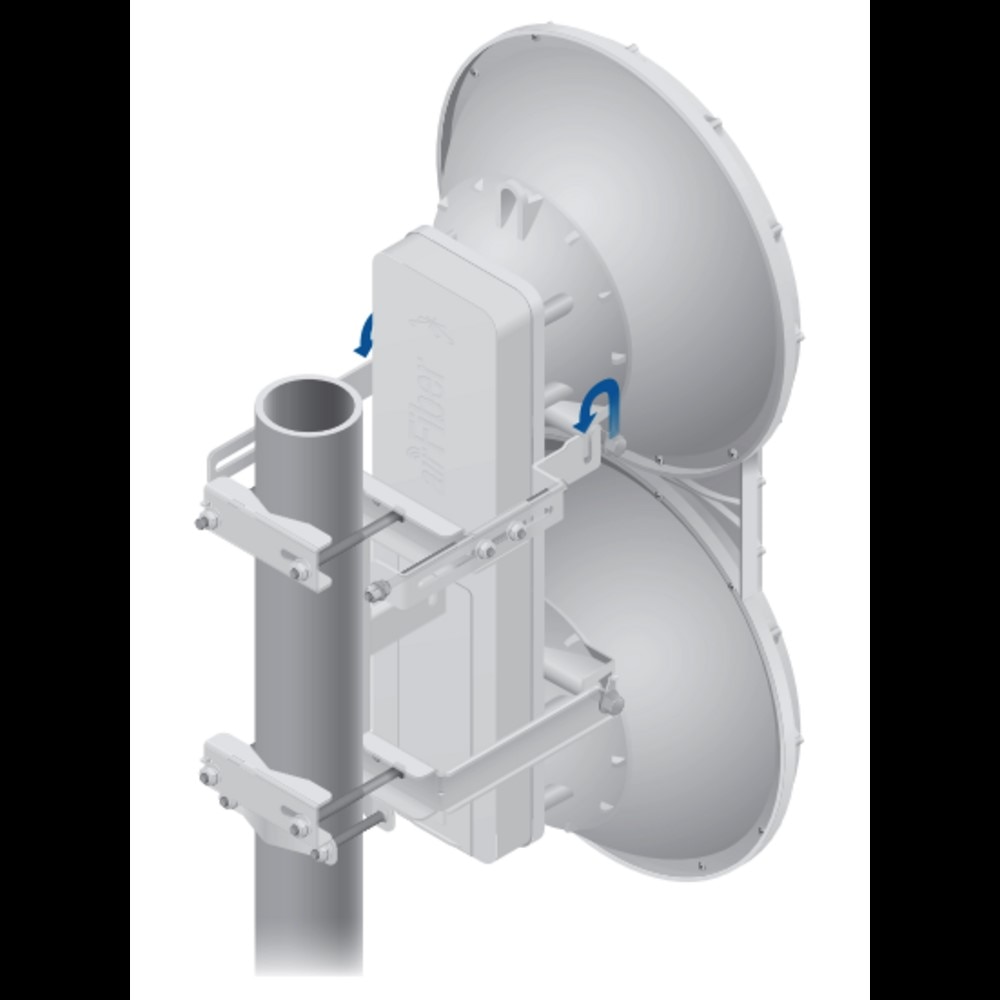

MountingPole mount kit (Included)
Wind loading863 N @ 200 km/h (194 lbf @ 125 mph)
Wind survivability200 km/h (125 mph)
Hardware
Networking interface(1) GbE RJ45 port
(1) 10/100 MbE RJ45 port
Auxiliary port(1) RJ-12, alignment tone port
Power methodPassive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-)
Power supply50V, 1.2A gigabit PoE adapter (Included)
Supported voltage range42–58V DC
Max. power consumption40W
Ambient operating temperature-40 to 55°C (-40 to 131° F)
CertificationsCE, FCC, IC
System
Max. throughput1.2+ Gbps
Max. range*100+ km
*Dependent on regulatory region.
Packets per second1+ million
Encryption128-Bit AES
Uplink/downlink ratioProgrammable in Half Duplex mode
Radio frame synchronizationGPS
RF
Operating frequency5470 - 5600 MHz, 5650 - 5850 MHz (FCC 15.247, 15.407, IC RSS 210)
5470 - 5875 MHz (ETSI EN 301 893, EN 302 502)
5470 - 5950 MHz (Other regions)
GPSGPS clock synchronization
EIRP~50 dBm
*Dependent on regulatory region and frequency band.
Frequency accuracy±2.5 ppm without GPS synchronization
±0.2 ppm with GPS synchronization
Channel bandwidth10/20/30/40/50 MHz
Modulation1024QAM MIMO
256QAM MIMO
64QAM MIMO
16QAM MIMO
QPSK MIMO
½ Rate QPSK xRT
¼ Rate QPSK xRT
Gain
TX
RX

23 dBi
23 dBi
Beamwidth
Front-to-back ratio70 dB
PolarizationDual-slant
Cross-polarity isolation> 28 dB
LEDs
System(12) Status LEDs: Data port pink/activity
Data port speed
Management port link/activity
Management port speed
GPS synchronization
Master/slave
Link status
Modulation mode 0.25x to 4x, 6x, 8x, 10x (unlabeled), overload
Remote and local displays (Calibrated signal strength)
