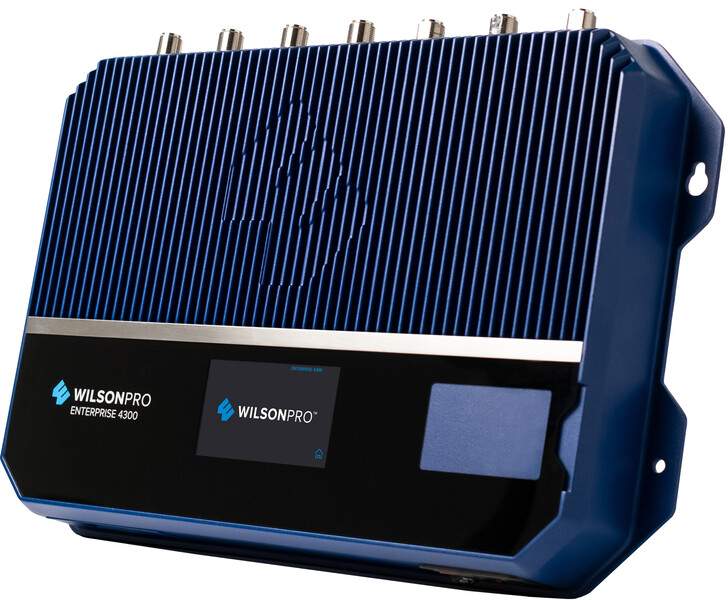

WilsonPro Enterprise 4300 Indoor Cellular Amplifier (460152)

Brand: WilsonPro
P\N: 460152
UPC: 811815029892

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

	GET EXPERT ADVICE
	Our experts will design custom solutions ideal for your needs. Call 877.312.4547 or email wilsonpro@signalgroupllc.com for a quote.

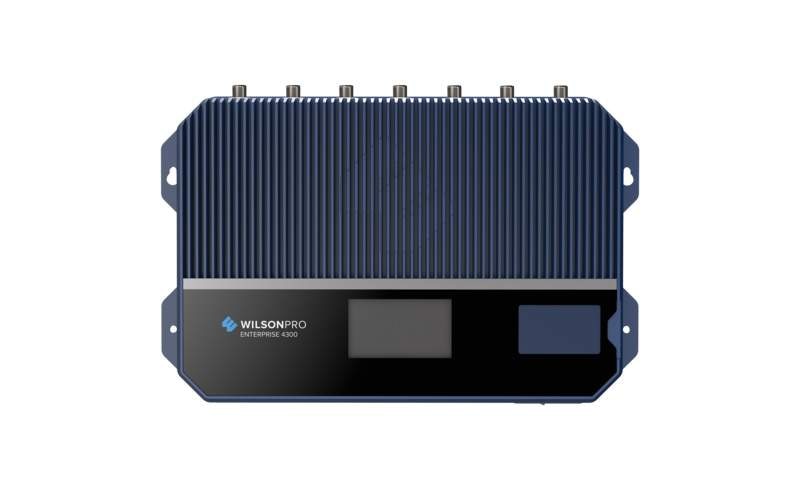

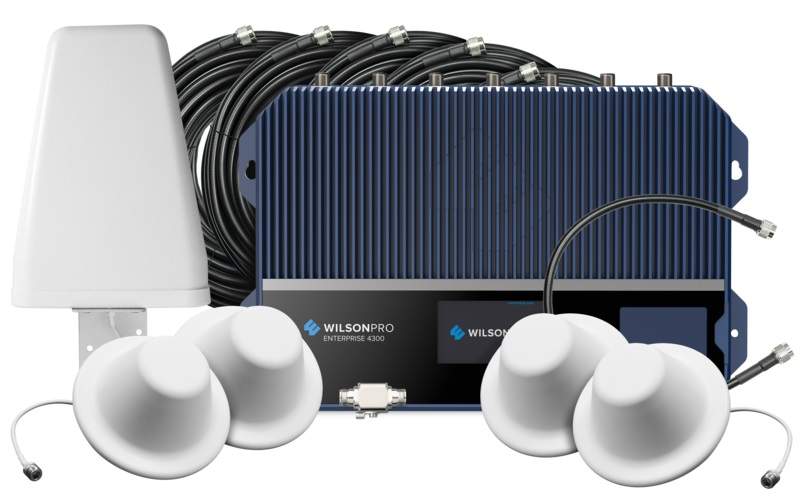

The WilsonPro Enterprise 4300 wall-mounted in-building cellular amplifier is the culmination of the latest cell signal boosting innovations?centered on its all-new Multi-Tower Targeting technology. Depending on cell tower locations, it can run up to three outdoor antennas; each dedicated to a specific frequency band to collectively amplify signals from multiple towers. Based on user need or preference, Enterprise 4300 can also utilize ?common mode? as its default; requiring only a single outdoor antenna to deliver enhanced cell signal coverage to its four indoor antennas.

With wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud for remote functionality, integrators and building managers can remotely manage, monitor, and adjust the Enterprise 4300 using a smartphone or tablet. Immediate notifications are received via email or text. Designed to reach towers at greater distances, it also produces up to 26 dBm in uplink and up to 17 dBm in downlink?making it one of the most powerful amplifiers within its price range. Relying on its four independently controlled indoor antenna ports, equipped with up to 17 dBm downlink power of their own.

Key Features:

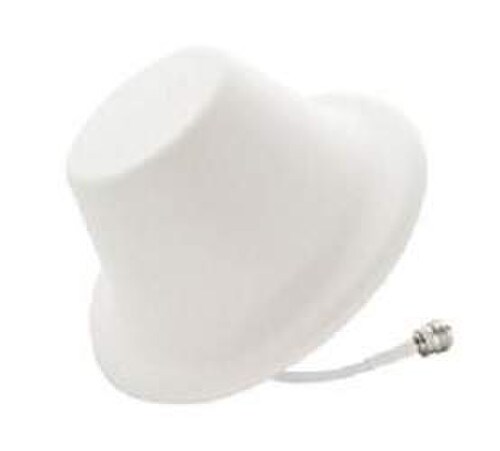

Four independently controlled indoor antenna ports to power four indoor antennas
Wired or LTE access (using the built-in cellular modem) to the WilsonPro Cloud
Remote management, monitoring, and adjustment of amplifier via smartphone or tablet
XDR Technology (eXtended Dynamic Range) automatically adjusts gain and will remain operational, even in the presence of a very strong outside signal
+26dBm maximum uplink power, +17 dBm maximum downlink power

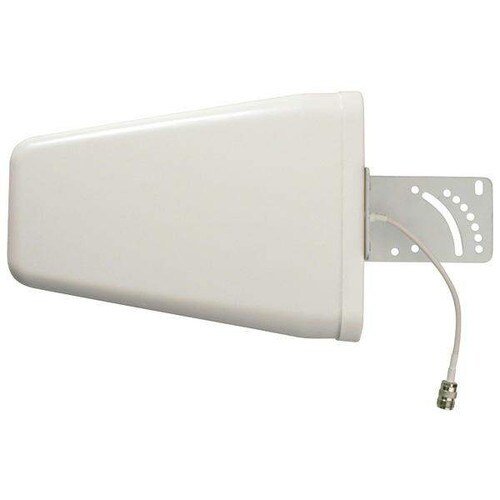

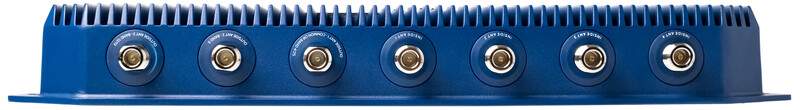

Three outdoor antenna ports for exclusive Multi-Tower Targeting Technology
Wall-mount installation. For rack-mount model please see 460153
FCC-approved and compatible with all US mobile carrier networks

Covers up to 100,000 sq. ft. per amplifier with enhanced cell signal on all available network speeds

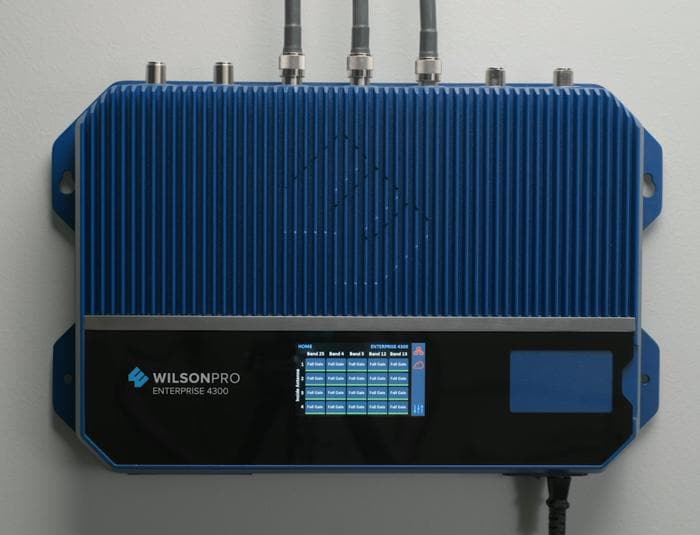

Color LCD touchscreen display, indicating gain and power levels of each band, for easy antenna setup, control, and troubleshooting

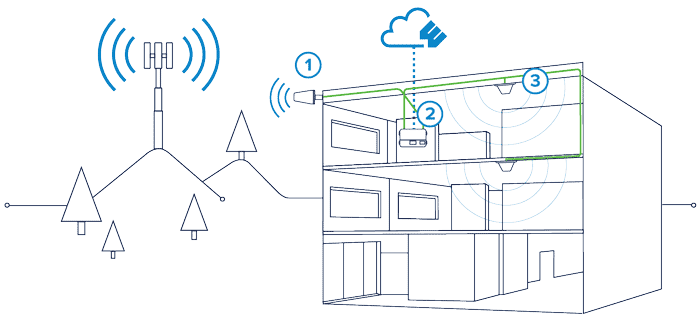

How it Works:

Receives Signal Using an outside antenna, the amplifier (booster) system detects and collects the existing cell signal from outdoors.	Boosts Signal The amplifier receives this signal through an outside antenna cable; boosting it to produce the best possible cell signal.	Broadcasts Signal Using inside antennas, the amplifier broadcasts the boosted signal indoors for use by anyone with a phone or cellular device.

Resources:
			Installation Manual			Specifications
