Winegard Boost 20dB HDTV Antenna Indoor In-line Amplifier (LNA-100)
- Brand: Winegard
- P\N: LNA-100
- UPC: 615798900045
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Winegard Boost 20dB HDTV Antenna Indoor In-line Amplifier (LNA-100)
Experience the power of advanced technology with the Winegard Boost 20dB HDTV Antenna Indoor In-line Amplifier. This state-of-the-art digital TV antenna amplifier boasts the lowest noise figure (1 dB typical), ensuring a clear, high-quality viewing experience. It's the perfect solution for enhancing any non-amplified antenna, boosting reception of low signals, and improving reception of faraway stations.
Key Features
- Includes amplifier, USB power cable, and 110V power adapter
- Plug-and-play solution to overcome signal loss from long cable runs and enhance weak TV channels
- For best performance, install before splitter or right at TV connection
- No outdoor installation required
- Bias (power supply): +5 V at 60 mA
- Gain: 20 dB
- Made in the USA
- 90-day limited Warranty
The Winegard Boost 20dB HDTV Antenna Indoor In-line Amplifier is lightweight, weighing only 2 pounds. It's designed for easy installation, with no outdoor installation required. The amplifier comes with a USB power cable and a 110V power adapter, providing a plug-and-play solution to overcome signal loss from long cable runs and enhance weak TV channels. For optimal performance, it's recommended to install the amplifier before the splitter or right at the TV connection. The power supply has a bias of +5 V at 60 mA, and the amplifier provides a gain of 20 dB.
Experience the Difference
With the Winegard Boost 20dB HDTV Antenna Indoor In-line Amplifier, you can enjoy a stronger, clearer signal and better HDTV reception. This advanced amplifier technology enhances your viewing experience, allowing you to enjoy your favorite shows and movies in high definition. It's time to say goodbye to signal problems and hello to a better viewing experience.
Don't wait. Experience the difference today with the Winegard Boost 20dB HDTV Antenna Indoor In-line Amplifier. Order now and enjoy a stronger signal and better HDTV reception!

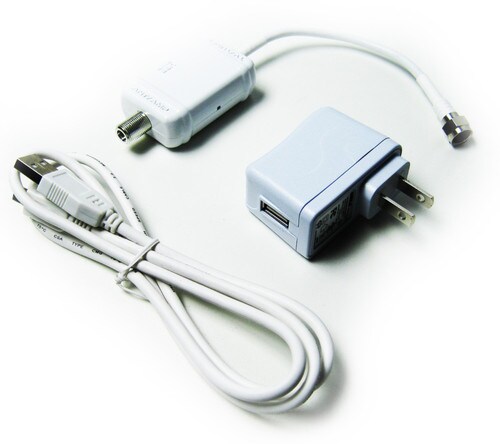

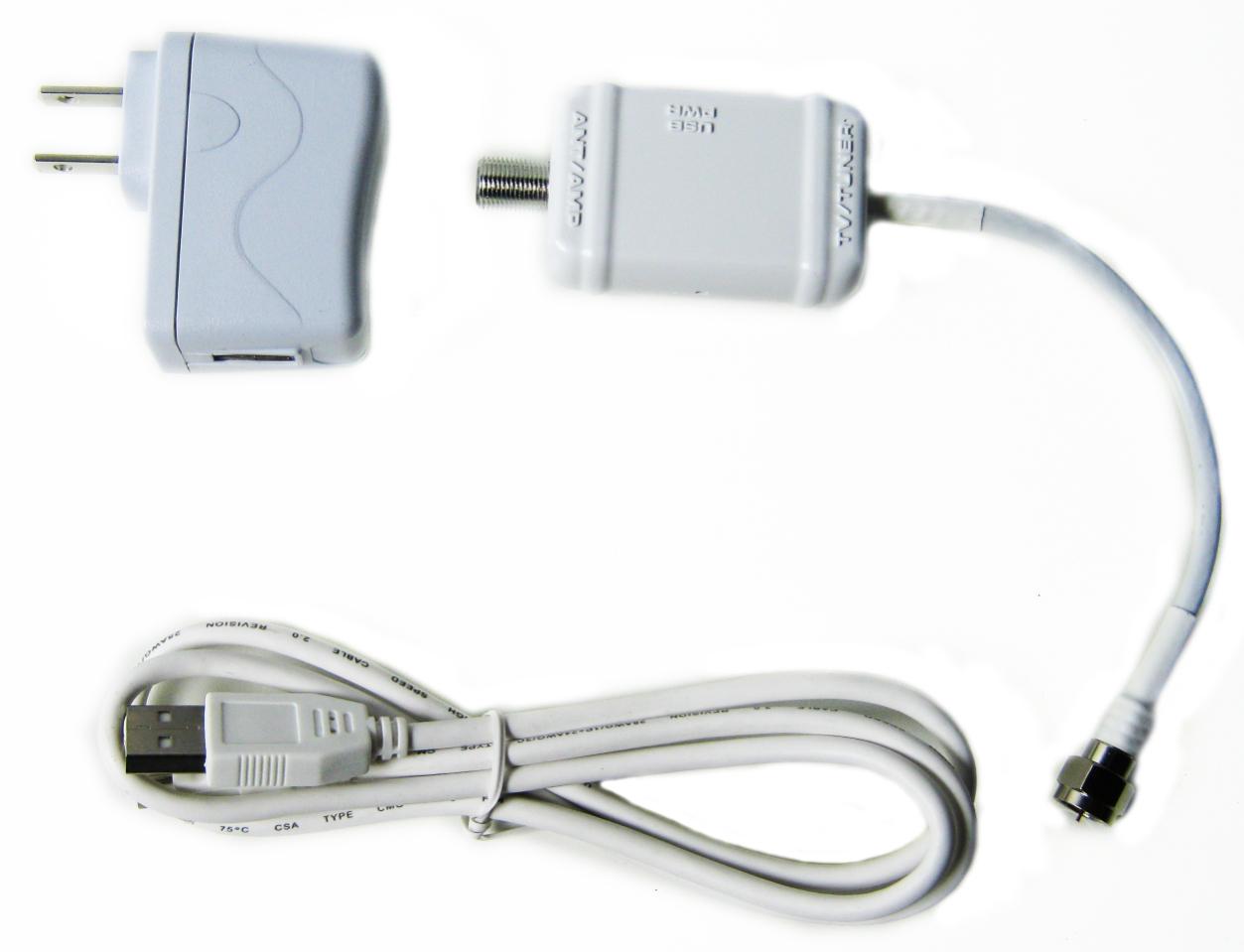

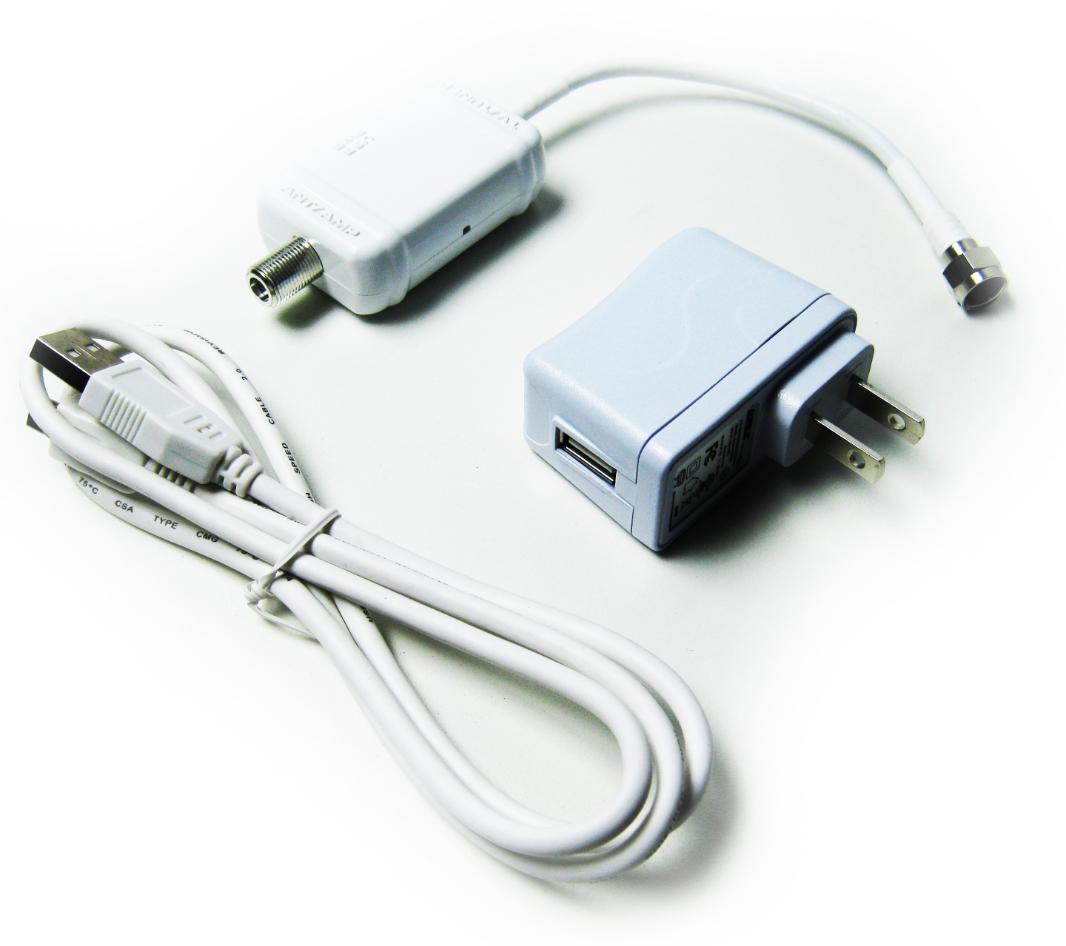

What's in the Box:
- Boost Indoor Digital TV Antenna Amplifier
- USB Power Cable
- 110V Adapter
- Printed Documentation
Features
- Indoor amplifier increases range and delivers a crystal clear TV signal
- Get more broadcast TV channels in high definition than with an antenna alone
- Enhances any indoor non-amplified antenna, delivering more range and available channels
Specifications
- Maximum Gain: 20dB (typical)
- Noise Figure: 1dB (typical)
- Power: +5 VDC
- Not for use with amplified antennas. Compatible with non-amplified antennas only.
- To receive programming, run a channel scan on your TV after setting up the antenna. To keep your channel lineup up-to-date, it is a good idea to run a channel scan monthly and anytime a channel is lost.
- Warranty: 1-Year Limited Warranty
- Weight: 0.50 lbs.
- Height: 4.63 Inches
- Width: 6.00 Inches
- Depth: 4.00 Inches
Downloads
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.govReviews
9 reviews
Thanks!!!
by Jerry W.Marshall
Hi working great ,thanks Solid Signal sales associate.
LNA 100
by Leah and Joseph Bigger
Your amplifier works just great and I would like to thank you very much Joe
The best performance at the lowest price
by Old TV Tech
The Winegard preamp has the lowest noise figure and highest immunity to overload on the market at the lowest price so it's a no brainer. After trying all the most expensive preamps on the market, the ONLY preamp that got ALL the channels in my market without breakup or overload was the Winegard.
Does the job
by James
Works okay
Works great, included power supply died
by Mik Analog
I used this to replace a Cabletronix CT-BDA24 which was a good, higer gain, but higer noise amp. Night and day better. Then after about a year one channel disappeared, then another, finally I couldn't get anything. The included supply had quit. I power cycled it and it came back, but still not great performance. I then replaced the supply with better wall wart, and bam! all my channels where back, better than before. Next, I'll swap it with a 5VDC linear supply with mucho RF filtering.
Nice, compact signal amplifier and appears to work as described
by Free TV
coupled with a good outdoor antenna (channel master 3000HD in my case), this product has exceeded my expectations. The Tivo Roamio I use shows that the signal boost to all channels I receive is at least 20% better
works - brought in/clarified 6 new stations.Only issue was (female)connector.
by bill
the connector on the antenna side of the amplifier is female. The connector on the HD Blade I had earlier purchased from Solid Signal also has a female output connector. Thus amplifier can not be directly connected to the antenna- an intervening connector or cable is required.
Very Quiet -Almost Transparent with 20 DB of Gain!
by FrankH
I operate a Frequency Measuring Service for Broadcast TV and Radio. I measure signals as much as 200 miles distant. Obviously I have some tall and very good antennas, but when I purchased one of the LNA100's I was skeptical. However, I can say that the LNA 100 is the best Amplifier I've found to date, at a reasonable price. Some signals that I measure set at -95 to -105 DB on my spectrum analyzer. This amplifier has fairly flat gain (20 DB +/- 3 DB) from Channel 2 to well beyond the presently authorized upper UHF Channels. When I put the LNA100 in line I can barely see the Noise Floor of the Spectrum Analyzer change, but the desired weak signal becomes easily measured with the ~ 20 DB of gain. NOTE: It does not amplify the FM Broadcast Band! Get one--you wont be disappointed.
Simple installation, dramatically improved OTA reception.
by Mohu Sky HDTV antenna user
Couldn't receive local OTA channel 6 ABC and channel 2 would become pixelated almost every day. I decided to see if it was the amplifier (one was supplied with the antenna) and replace it with this Winegard LNA-100 Boost based on the reviews. Well as soon as I completed my first channel scan both 6 and 2 came in clear as a bell AND they have stayed that way. I would highly recommend this amplifier!
