Winegard Platinum Outdoor TV Antenna VHF UHF FM (HD8200U)
- Brand: Winegard
- P\N: HD8200U
- UPC: 635331581425
Live Chat
Contact Us
Description

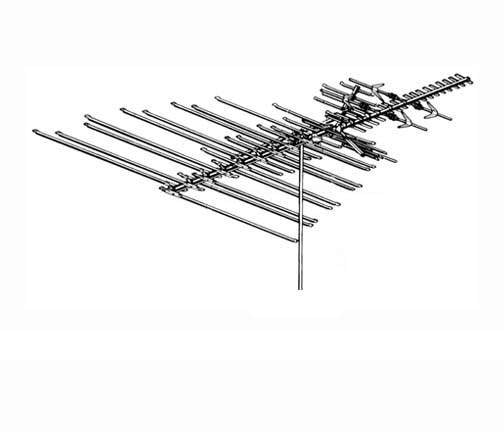

Winegard HD8200U Platinum Series Outdoor TV Antenna
Best For
Rural and suburban homes that need long-range reception across low-VHF, high-VHF, and UHF television bands, especially where broadcast towers are farther away or signals are weakened by terrain and trees.
Why Choose the Winegard HD8200U?
The HD8200U is a large directional outdoor antenna built for full-band over-the-air television reception. It receives low-VHF channels 2-6, high-VHF channels 7-13, and UHF channels 14-36, making it useful in markets where important local stations are spread across multiple frequency bands. Winegard rates the antenna for long-range reception of 65+ miles, although actual reception depends on terrain, obstructions, tower power, installation height, and other local conditions.
Zinc-plated steel hardware provides corrosion resistance for outdoor installation, while the antenna's directional design helps focus reception toward broadcast towers.
Key Benefits
- Directional outdoor antenna for low-VHF, high-VHF, and UHF reception
- Receives low-VHF channels 2-6, high-VHF channels 7-13, and UHF channels 14-36
- Winegard-rated 65+ mile maximum reception range; actual results vary by location
- NextGen TV / ATSC 3.0 compatible for receiving supported over-the-air broadcasts
- Zinc-plated steel hardware for corrosion resistance
- 75-ohm connection
- Compatible with TVs, DVRs, computers, and streaming devices that include an over-the-air tuner or integration
Who Should Buy the HD8200U?
This antenna is intended for viewers who need a large, directional outdoor antenna capable of receiving television stations across both VHF bands and UHF. It is particularly useful when a smaller UHF-focused antenna may not adequately cover low-VHF or high-VHF stations in the local market.
Installation and Use
Aim the antenna toward the desired broadcast towers and run a channel scan on the connected TV or tuner after installation. Rescan periodically or when local channel assignments change. A mast shown in manufacturer imagery is sold separately, and coaxial cable is not included.
Product Details
- Model: HD8200U
- Type: Directional outdoor VHF/UHF TV antenna
- Reception: Low-VHF 54-88 MHz; High-VHF 174-216 MHz; UHF 470-608 MHz
- Impedance: 75 ohms
- Weight: 15.4 lb
What's Included

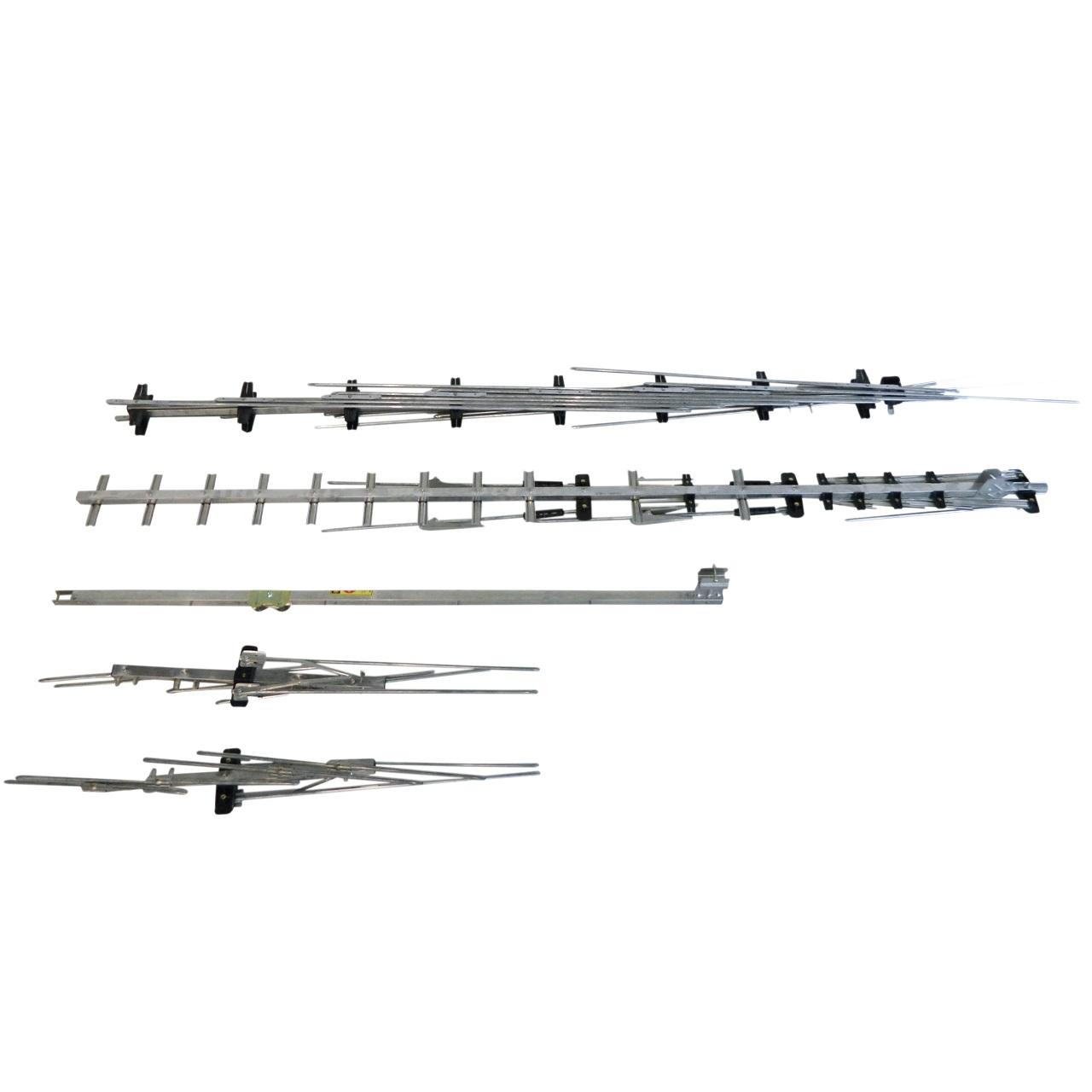

- Winegard HD8200U Platinum Series antenna
- Printed documentation
Please note: Coaxial cable is not included. RG6 coaxial cable is recommended for typical TV antenna installations.
Features
- NextGen TV Compatible
- Long range outdoor antenna provides free programming from 65+ miles away
- Ultra HD and ATSC 3.0 ready for the best in picture quality
- Steel hardware is zinc plated for maximum corrosion resistance
Specifications
- Antenna Directivity: Directional
- Reception Types: VHF/UHF
- Low-Band VHF (Very High Frequency): Provides channels 2-6 in the frequency range 54-88 MHz.
- High-Band VHF (Very High Frequency): Provides channels 7-13 in the frequency range 174-216 MHz.
- UHF (Ultra High Frequency): Provides channels 14-36 in the frequency range 470-608 MHz.
- Compatible with any streaming device with over-the-air integration, TV, DVR, or computer with a digital tuner.
- 5' Swedged Mast (TB-0005) shown, sold separately
- To receive programming, run a channel scan on your TV after setting up the antenna. To keep your channel lineup up to date, it is a good idea to run a channel scan monthly and anytime a channel is lost.
- Weight: 15.40 LBS
- Height: 6.75 Inches
- Width: 94.25 Inches
- Depth: 7.75 Inches
