  • Altelix NF141210AU - 14x12x10 Fiberglass Weatherproof NEMA Enclosure with 100-240 VAC Universal Power Outlet

Altelix NF141210AU - 14x12x10 Fiberglass Weatherproof NEMA Enclosure with 100-240 VAC Universal Power Outlet

  • Brand: Altelix
  • P\N: NF141210AU
(0)No Reviews yet

Availability: In Stock


Your Price: $284.79

Do you have questions?

Please contact our experts for assistance.

Description

Description

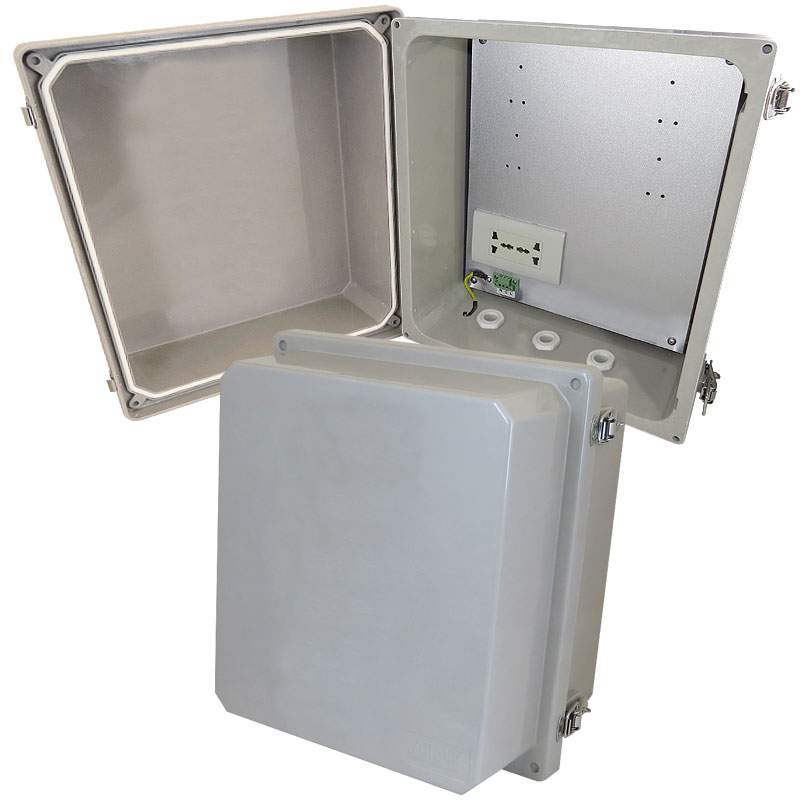

Altelix 14x12x10 Fiberglass Weatherproof NEMA Enclosure with 100-240 VAC Universal Power Outlet

NEMA 4X Protection with Universal Power for Worldwide Operation

The Altelix NF141210AU NEMA 4X enclosure features a 100-240VAC universal power outlet supporting multiple international power standards in addition to the USA:

  • 110VAC 50/60Hz
  • 115VAC 50/60Hz
  • 220VAC 50/60Hz
  • 230VAC 50/60Hz
  • 240VAC 50/60Hz

The universal 100-240 VAC power outlet is compatible with the following plug types:

  • UK/Ireland BS 1363
  • Italy CEI 23-16/VII
  • Denmark Afsnit 107-2-D1
  • Euro plug (2-pin) CEE 7/16
  • Australia Type I
  • India BS 546

For the following plugs types, please refer to the safety notes in the Technical Specs:

  • Swiss (2-pin) SEV 1011
  • Israel SI 32
  • North America (2-pin) NEMA 1-15 and (3-pin) NEMA 5-15
  • Continental Europe (Schuko) CEE 7
  • France/Belgium CEE 7

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. These enclosures feature improved stainless steel hinges with high quality 316 steel hinge pins for lasting durability in even the harshest of coastal conditions. The gasketed door includes stainless steel quick release latches with padlock hasps.

Increased Interior Space
The NF141210 series enclosures feature an extra deep lid, almost 2 inches deeper than our NF141208 series enclosures. With the generous size of this enclosure and extended lid the NF141210 can accommodate a wide range of equipment.

Aluminum Equipment Mounting Plate
The enclosure includes an aluminum equipment mounting plate. The enclosure and plate can be drilled by the installer to suit unique site requirements.

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel ( NMKS-300-08) and stainless steel (NMKX-300-08).

Additional Sizes Available
The NF14 series enclosures are available in two additional sizes:
NF141206 Series - 14x12x6
NF141208 Series - 14x12x8

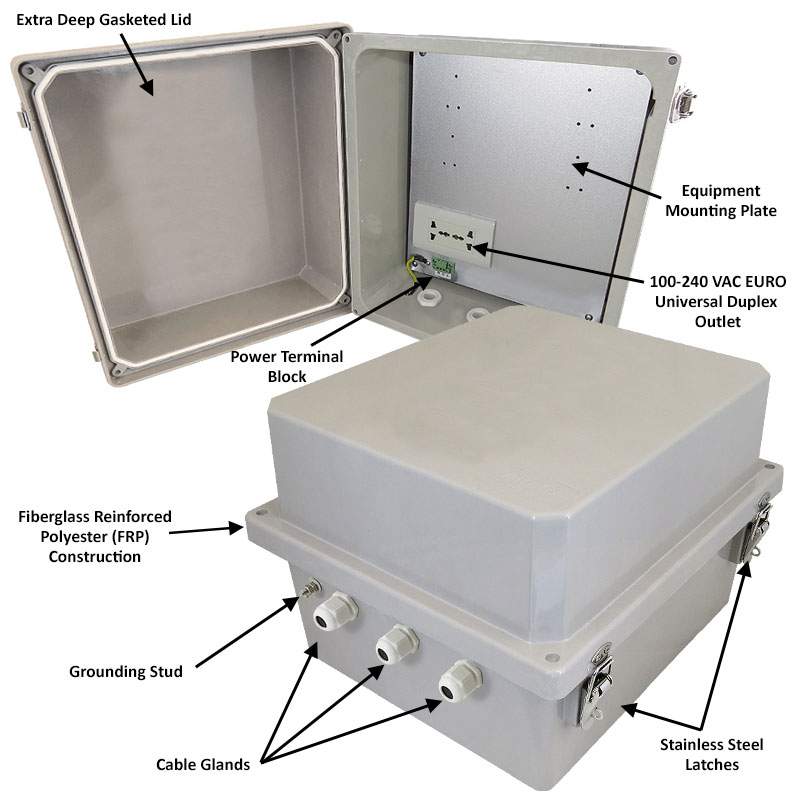

Features

  • Two Universal 100-240VAC Outlets
  • Aluminum Equipment Mounting Plate
  • Extra Deep Extended Lid for Increased Equipment Clearance
  • Stainless Steel Hinges with High Quality 316 Steel Hinge Pins
  • Stainless Steel Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • Meets NEMA 1, 2, 4, 4X, 12, 13, and IP65, IP66
  • Includes Cable Glands and (4) Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available

Applications

  • Rapid Deployment Systems
  • Worldwide Operation
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure
