Blackmagic Design Pocket Cinema Camera Pro EVF (BMD-CINECAMPOCHDMFTEVF)

Brand: Blackmagic Design
P\N: BMD-CINECAMPOCHDMFTEVF
UPC: 9338716006933

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Blackmagic Design Pocket Cinema Camera Pro EVF (BMD-CINECAMPOCHDMFTEVF)

The Blackmagic Pocket Cinema Camera Pro EVF is the perfect accessory to make outdoors and handheld shooting easy! You get a high quality viewfinder with built in proximity sensor, 4 element glass diopter with an incredible -4 to +4 adjustment, built in status information, and a digital focus chart. The Pocket Cinema Camera Pro EVF connects quickly to the Blackmagic Pocket Cinema Camera 6K Pro via a single connector. The viewfinder has up to 70 degree swivel, and comes with a set of 4 eyecups including left and right eye.

Key Features:

Display Resolution: 1280 x 960
Display Pixels: 3.68 million dots
Display Type: Micro OLED
Frame Rates: Up to 60 fps
Color Precision: 24 bit RGB, 16.7 million colors
Focus: 4 element diopter.
Diopter Range: -4 to +4
Power: Auto ON/OFF controlled by inbuilt proximity sensor.

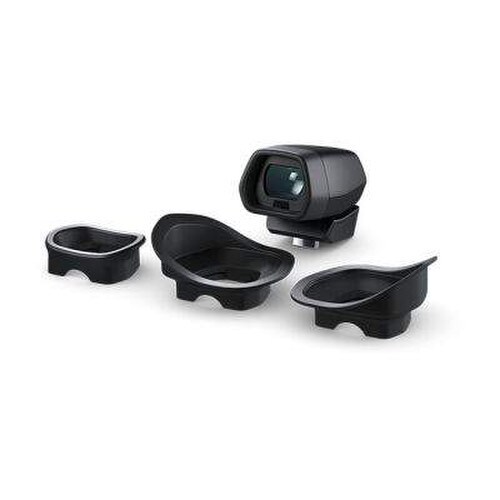

What's in the Box:

Blackmagic Pocket Cinema Camera Pro EVF
Small Eye Cup
Medium Eye Cup
Left Eye Cup
Right Eye Cup

Interested in learning more about this product?Check out our blog!

Features

Connections

Video and Power Inputs

Via Pocket Cinema Camera 6K Pro EVF connector

Fixing

Integrated M4 x 3.3 (0.7 pitch) locking screw

Features

Display Resolution

1280 x 960

Display Pixels

3.68 million dots

Display Type

Micro OLED

Frame Rates

Up to 60 fps

Color Precision

24 bit RGB, 16.7 million colors

Focus

4 element diopter.

Diopter Range

-4 to +4

Power

Auto ON/OFF controlled by inbuilt proximity sensor.

Controls

Viewfinder display configuration set via Monitor Page in camera menu settings.

Overlays

Camera settings, status and meters displayed in top and bottom blank area.

Eyepiece

Can be tilted +70° vertically.

Eye Cup

4 x interchangeable silicone eye cups including small, medium, left eye and right eye.

Mounting Options

Compatible with Pocket Cinema Camera 6K Pro.

Metadata Support

Supports camera information from Pocket Cinema Camera 6K Pro.

Specifications

Connections

Video and Power Inputs

Via Pocket Cinema Camera 6K Pro EVF connector

Fixing

Integrated M4 x 3.3 (0.7 pitch) locking screw

Physical Specifications

Environmental Specifications

Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing
