Altelix NMHS-600-T - Rohn 25G and 45G Tower Enclosure Mounting Kit - Universal Design for Small to Large Size Enclosures

Altelix Enclosure Mounting Kit for Rohn® 25G and 45G Towers - Universal Design for Small to Large Size Enclosures

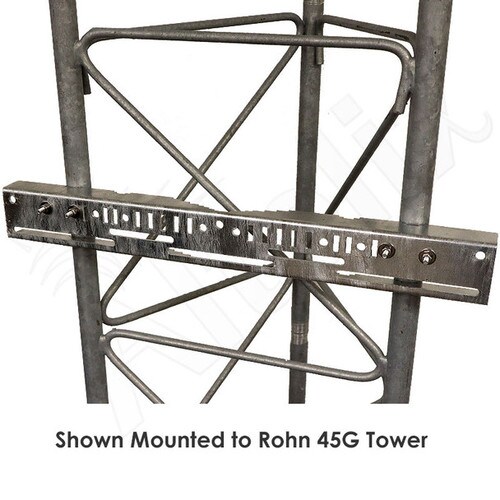

The Altelix NMHS-600-T mounting kit is designed for use with Rohn® 25G and Rohn® 45G towers. Included U-bolts allow these brackets to be easily mounted to the Rohn tower. These brackets can also be used with a single pole up to 1.3” (34.9mm) diameter using the included U-bolts.

This kit can also be used with Campbell® UT6 and UT10 towers as well as Amerite® AME 25 and AME 45 towers.

Universal Design
The NMHS-600-T brackets feature unique overlapping mounting slots for versatile mounting capabilities. This allows these brackets to be used with enclosures with mounting points up to 22.2” (565mm) apart. This allows these brackets to be used with a wider range of enclosures from small to large.

Heavy Duty Construction

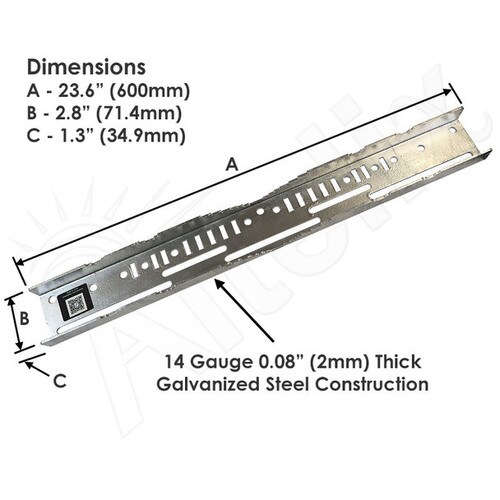

These NMHS Rohn® tower mounting brackets are designed for rugged all-weather installations. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) galvanized steel and are ideal for all weather applications.

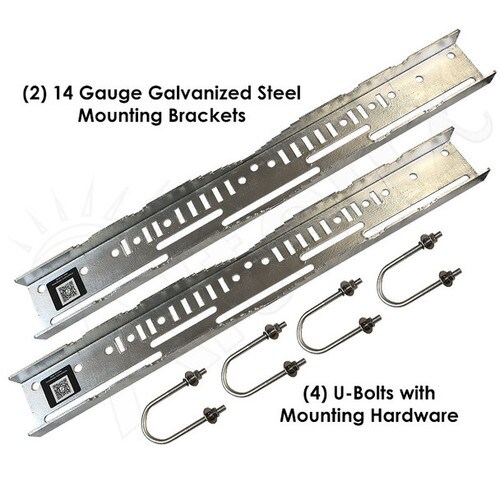

The NMHS-600-T kit includes:

• (2) 14 gauge galvanized steel Rohn tower mounting brackets
• (4) Steel U-bolts with mounting hardware

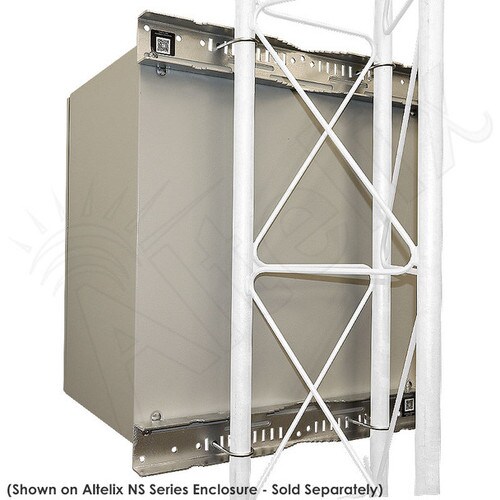

The NMHS-600-T Rohn® tower mounting kit can also be used with the following Altelix enclosures:

• All NP Series Polycarbonate Enclosures
• All NF Series FRP Enclosures
• All NFC Series FRP Enclosures
• All NS Series Painted Steel Enclosures
• All NX Series Stainless Steel Enclosures

Optional heavy duty adjustable stainless-steel bands can also be purchased for the following pole sizes:

• Heavy Duty Bands for Poles 1.7 to 8.0 inches (44.4 to 203.2mm) in diameter
• Heavy Duty Bands for Poles 1.7 to 12.0 inches (44.4 to 304.8mm) in diameter
• Heavy Duty Bands for Poles 1.7 to 16.0 inches (44.4 to 406.4mm) in diameter

This mounting kit is also available for use with smaller enclosures with mounting points up to 14.3” (365mm) apart. See NMHS-400-T.

Rohn® is a trademark or registered trademark of Rohn Products, LLC., Campbell® is a trademark or registered trademark of Campbell Scientific, Inc., Amerite® is a trademark or registered trademark of American Tower Company.
