A-Neuvideo HD BaseT PoH 328' 100m 2-Way IR HDMI Kit (ANI-5PLAY)
- Brand: A-NeuVideo
- P\N: ANI-5PLAY
- UPC: 857391003642
Do you have questions?
Please contact our experts for assistance.
Description
Description

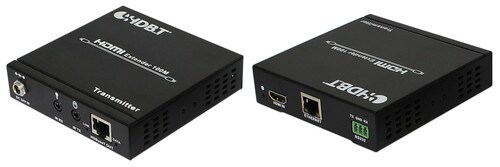

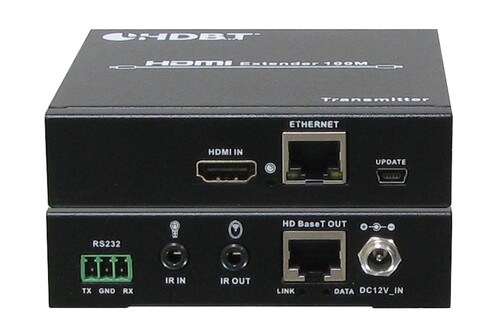

The ANI-5PLAY is an HDMI extender tool which can extend your HDMI signal up to 328 ft (100M) to a compatible display. It is designed to convert HDMI signals to standard HD BaseT signals which can be transmitted by a single CATx cable.

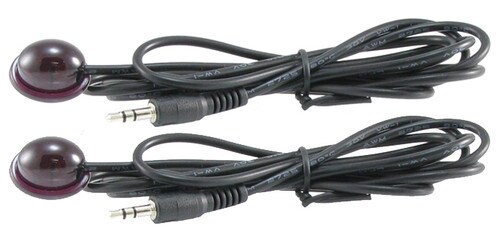

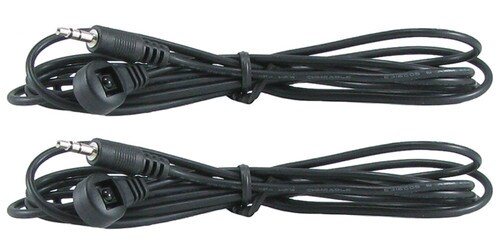

It also supports bi-directional infrared control signals, RS-232 control signals, and an Ethernet signal together with an uncompressed HDMI signal. The ANI-5PLAY also supports PoH (Power over HD BaseT) requiring only one power supply to provide power to both the Transmitter and the Receiver.
Key Features
It also supports bi-directional infrared control signals, RS-232 control signals, and an Ethernet signal together with an uncompressed HDMI signal. The ANI-5PLAY also supports PoH (Power over HD BaseT) requiring only one power supply to provide power to both the Transmitter and the Receiver.
Key Features
- POH (Power Over HDBaseTT) function supports, either TX or RX powered by a 24V at 1A power supply
- Uses single UTP LAN cable (CAT5E/6) to substitute an HDMI cable to achieve long distance transmission
- PoE power consumption is less than 10W
- Supports display resolutions up to 4K2K at 30 Hz
- Full HD support: 1080p at 60 Hz at 48 bit/pixels, 1080p at 120 Hz at 24 bit/pixels, 3D 10809 at 60 Hz and 4K2K at 30 Hz at 24 bit
