Altelix NF141206VFHA1 - 14x12x6 Fiberglass Vented & Heated Weatherproof NEMA Enclosure with Cooling Fan, 200W Heater 120 VAC Outlets

  • Brand: Altelix
  • P\N: NF141206VFHA1
(0)No Reviews yet

Availability: In Stock


Your Price: $339.99

Do you have questions?

Please contact our experts for assistance.

Description

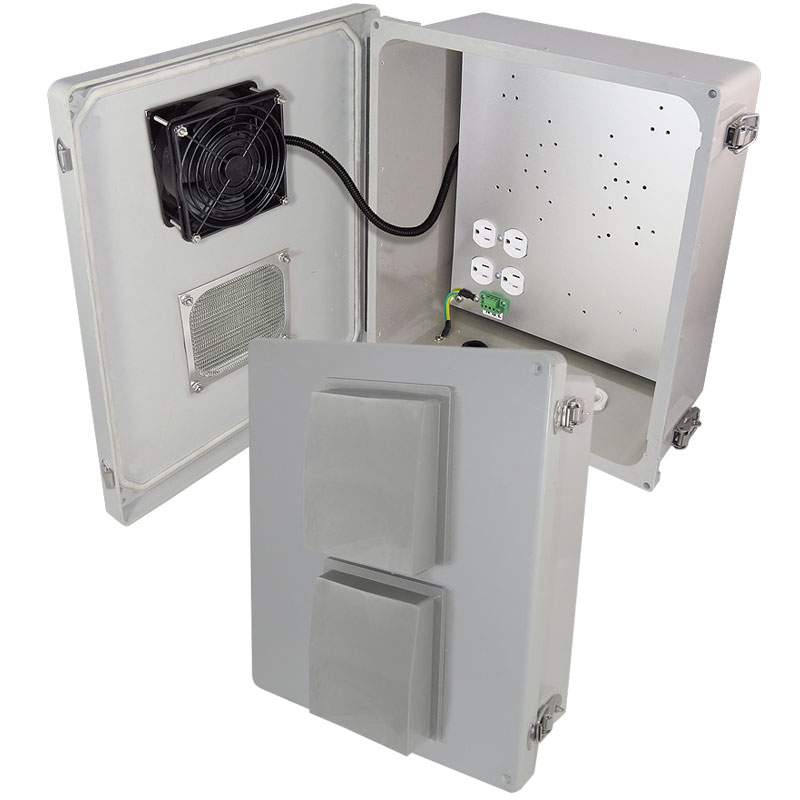

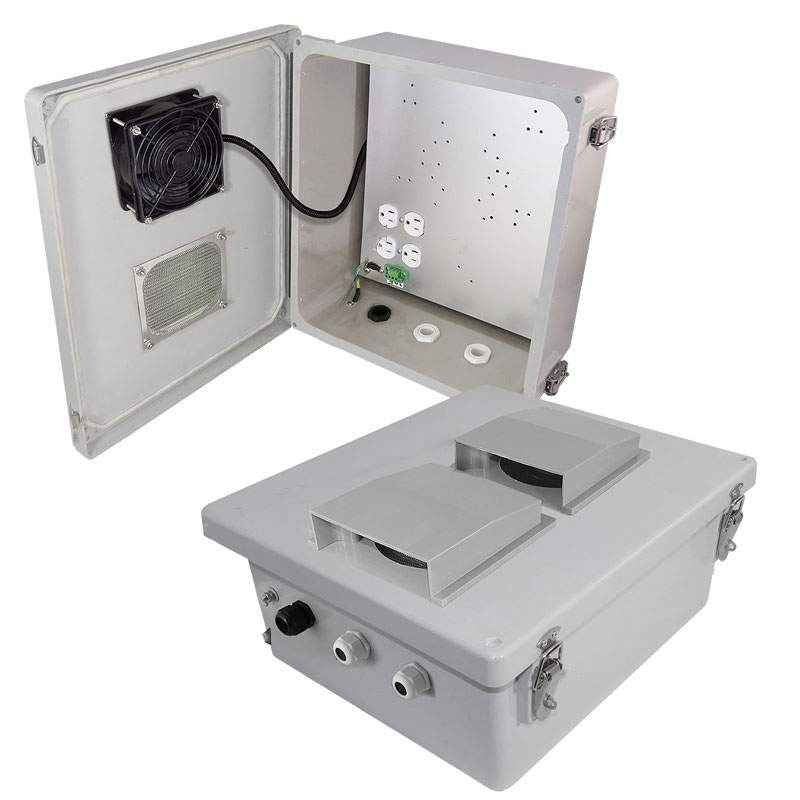

Altelix Weatherproof Vented and Heated Enclosure with Cooling Fan (NF141206VFHA1)

Heated & Fan Cooled NEMA Enclosure with 120VAC Power for All Weather Conditions

The Altelix NF141206VFHA1 is deal for outdoor environments where temperatures vary between hot and cold. It is equipped with thermostat controlled heating and cooling systems to help keep your equipment within its operational temperature range.

200W Thermostat Controlled Heating System
This enclosure features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is mounted below the equipment plate and wired internally so leaves the interior space and power outlets available for your equipment.

Thermostat Controlled Cooling Fan
This enclosure also features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for your equipment.

120VAC Power Outlets
This enclosure provides four pre-wired 120VAC power outlets and a quick-connect terminal strip for easy wiring by a qualified installer.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure accommodates a wide range of equipment.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Removable Terminal Block
This enclosure features our 120VAC top entry terminal block. It is easily removable which helps simplify on-site wiring. It can accept wires sizes from 12 to 18 AWG. The wires are secured by side terminal screws.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available. See available accessories when adding to cart.

Larger Size Available
For applications requiring additional interior space, this enclosure is also available in a larger size. The NF141208VFHA1 14x12x8 enclosure features an extended lid for increased equipment clearance.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Interested in learning more about this product?Check out our blog!

Features

Features

  • Thermostat Controlled 200W Heating System
  • Thermostat Controlled Cooling Fan
  • Two (2) 4 inch Vents with Rain Shields and Screens
  • (4) Pre-Wired 120VAC Outlets
  • Removable 120VAC Terminal Block
  • Aluminum Equipment Mounting Plate
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available

Applications

  • Rapid Deployment Systems
  • Harsh Cold-Weather Environments
  • Varying Temperature Conditions
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure
  • Battery and Charger Box

Specifications

MaterialFiberglass Reinforced Polyester
ColorGray
Voltage120VAC
Max Load15A @ 120VAC
Terminal Block Wire Range12-18 AWG
Terminal Block Wire Strip Length6-7mm
Cooling Fan Turn-On Temperature100°F (38°C) ±6°F
Cooling Fan Turn-Off Temperature79°F (26°C) ±9°F
Heater Turn-On Temperature43°F (6°C) ±5°F
Heater Turn-Off Temperature59°F (15°C) ±5°F
Heater Power200 Watts
Outer Dimensions15.7 x 13.8 x 8.0 Inches
(401 x 352 x 205 mm)
Inner Dimensions*13.0 x 11.0 x 2.7 Inches
(330 x 279 x 69 mm)
Mounting Plate Material0.10 in (2.5 mm) Aluminum
Mounting Plate Dimensions10.9 x 12.8 in. (276 x 324 mm)
Weight13.0 lbs. (5.9 kg)
RatingsNEMA Type 3R, 3RX / IP24
Flame RatingUL94-5V
*See drawing for detailed dimensions of maximum space available for equipment.
