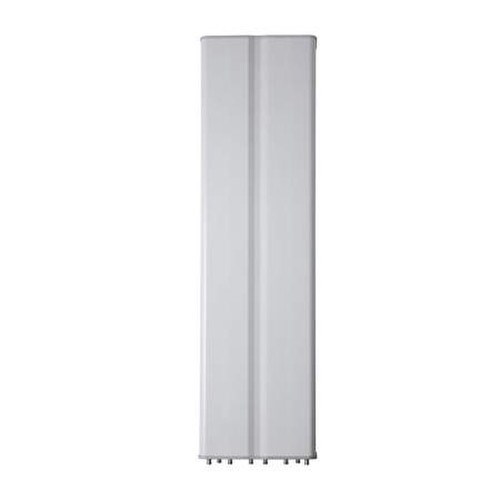

CommScope 12-Port Sector Antenna (NNH4-65C-R6)

CommScope 12-Port Sector Antenna (NNH4-65C-R6): Enhance Your Wireless Network Performance

Key Features and Benefits

• 12-port sector antenna with 4x 698–896 MHz and 8x 1695–2360 MHz frequency bands
• 4T4R (4X MIMO) capability for Band 14, AWS, PCS, and WCS applications
• Independent tilt for all arrays
• Optimized SPR performance across all operating bands
• Excellent wind loading characteristics
• Remote Electrical Tilt (RET) for easy adjustments

Superior Performance and Flexibility

The CommScope 12-Port Sector Antenna (NNH4-65C-R6) is designed to provide exceptional performance and flexibility for your wireless network. With its broadband Low Band (698-896 MHz) and High Band (1695-2360 MHz) arrays, this antenna offers 4T4R (4X MIMO) capability for Band 14, AWS, PCS, and WCS applications. The independent tilt for all arrays allows for precise adjustments, ensuring optimal coverage and signal strength.

Optimized SPR and Wind Loading

Experience optimized SPR performance across all operating bands with the NNH4-65C-R6 antenna. Its excellent wind loading characteristics ensure stability and durability in various weather conditions, making it suitable for outdoor usage.

Remote Electrical Tilt (RET) for Easy Adjustments

The CommScope 12-Port Sector Antenna features Remote Electrical Tilt (RET) technology, allowing for easy adjustments to the antenna's tilt angle. This enables you to fine-tune your network coverage and performance without the need for manual intervention.

Technical Specifications

• Antenna Type: Sector
• Band: Multiband
• Radome Material: Fiberglass, UV resistant
• Radiator Material: Low loss circuit board
• Reflector Material: Aluminum
• RF Connector Interface: 4.3-10 Female
• RF Connector Location: Bottom
• RF Connector Quantity, high band: 8
• RF Connector Quantity, low band: 4
• RF Connector Quantity, total: 12
• Dimensions: 498 mm x 197 mm x 2438 mm (19.606 in x 7.756 in x 95.984 in)
• Net Weight, without mounting kit: 46.8 kg (103.176 lb)

Upgrade your wireless network performance with the CommScope 12-Port Sector Antenna (NNH4-65C-R6). With its advanced features and robust design, this antenna is the perfect solution for enhancing your network coverage and signal strength. Don't wait – order now and experience the difference!
