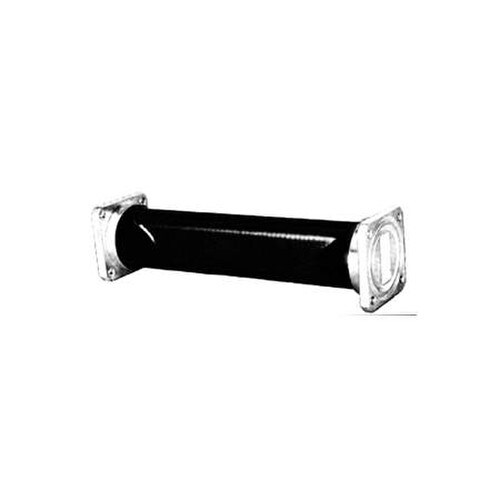

CommScope 36" FlexTwist CPR137G to CPR137 Interface (F137CCS3)

Introducing the CommScope 36" FlexTwist CPR137G to CPR137 Interface (F137CCS3)

Upgrade your communication system with the CommScope 36" FlexTwist CPR137G to CPR137 Interface (F137CCS3), a high-quality and reliable flexible twist for WR137 waveguides. Designed for professionals who demand the best performance from their antennas, this FlexTwist® product ensures optimal signal transmission and reception in the 5.85-8.2 GHz frequency band.

Key Features and Benefits

• Flexible twist design for easy installation and reduced stress on waveguide connections
• Low attenuation and high power handling for efficient signal transmission
• Wide operating frequency band for versatile applications
• Compliant with ISO 9001:2015, RoHS, China-RoHS, REACH-SVHC, and UK-RoHS standards for quality and safety assurance

Technical Specifications

• Product Type: Rectangular waveguide, flexible twist
• Product Brand: FlexTwist®
• Component: Flexible Twist
• Interface: CPR137G
• Interface 2: CPR137G
• Length: 900 mm | 35.433 in
• Waveguide Size: WR137 | WG14 | R70
• Attenuation: 0.3 dB/m | 0.091 dB/ft
• Average Power: 2000 W
• Operating Frequency Band: 5.85 – 8.2 GHz
• Peak Power: 500 kW
• VSWR: 1.100000023841858
• Minimum Bend Radius, Multiple Bends (E Plane): 102 mm | 4.016 in
• Minimum Bend Radius, Multiple Bends (H Plane): 204 mm | 8.031 in
• Maximum Twist: 214 °/m | 65.227 °/ft
• Pressurization, maximum: 0.207 N/mm² | 30 psi

Experience the difference that the CommScope 36" FlexTwist CPR137G to CPR137 Interface (F137CCS3) can make in your communication system. With its flexible design, low attenuation, and high power handling capabilities, this product is perfect for professionals who require top-notch performance from their antennas. Moreover, its compliance with various quality and safety standards ensures that you are investing in a reliable and trustworthy product.

Don't settle for less when it comes to your communication system. Upgrade to the CommScope 36" FlexTwist CPR137G to CPR137 Interface (F137CCS3) today and experience the benefits of superior signal transmission and reception. Order now and elevate your communication capabilities to new heights!
