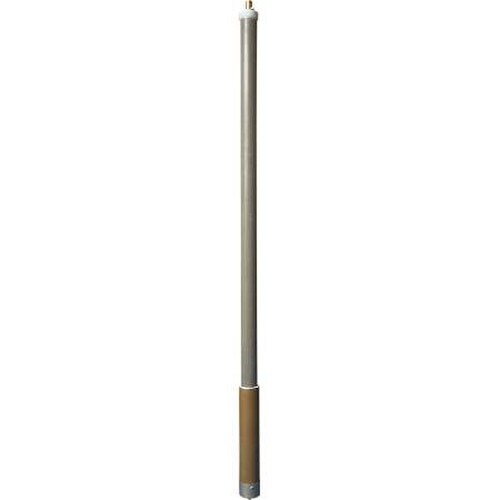

CommScope 450-482MHz Fiberglass Omnidirectional Antenna (DB630-C)

  • Brand: CommScope
  • P\N: DB630-C
  • UPC: 729198792800
(0)No Reviews yet

Availability: Backorder


Your Price: $2,070.00

Do you have questions?

Please contact our experts for assistance.

Description

CommScope 450-482MHz Fiberglass Omnidirectional Antenna (DB630-C)

Experience seamless communication with the CommScope 450-482MHz Fiberglass Omnidirectional Antenna (DB630-C), a high-quality, durable antenna designed to provide reliable performance in various environments. This rugged antenna is perfect for professionals who require a dependable communication solution for their operations.

Key Features and Benefits

  • Wide operating frequency band of 450-482 MHz
  • 360° horizontal beamwidth for comprehensive coverage
  • Rugged, durable design with heavy-duty radome for minimal tip deflection
  • Invert mountable for versatile installation options
  • UV-resistant fiberglass radome material for outdoor usage
  • High maximum input power of 500 watts per port

Technical Specifications

  • Antenna Type: Omni
  • Band: Single band
  • Color: Horizon blue
  • Grounding Type: RF connector inner conductor and body grounded to reflector and mounting bracket
  • Radome Material: Fiberglass, UV resistant
  • Radiator Material: Brass
  • RF Connector Interface: N Female
  • RF Connector Location: Bottom
  • RF Connector Quantity, low band: 1
  • RF Connector Quantity, total: 1
  • Dimensions: Length - 965.2 mm | 38 in, Outer Diameter - 50.8 mm | 2 in
  • Net Weight, without mounting kit: 2.7 kg | 5.952 lb
  • Electrical Specifications: Impedance - 50 ohm, Operating Frequency Band - 450 – 482 MHz, Polarization - Vertical, Gain, dBi - 2.1, Beamwidth, Horizontal, degrees - 360, Beamwidth, Vertical, degrees - 80, Beam Tilt, degrees - 0, VSWR | Return loss, dB - 1.5 | 14.0, Input Power per Port, maximum, watts - 500
  • Mechanical Specifications: Wind Loading @ Velocity, maximum - 60.5 N @ 100 mph (13.6 lbf @ 100 mph), Wind Speed, maximum - 201 km/h | 124.896 mph
  • Regulatory Compliance/Certifications: CE - Compliant with the relevant CE product directives, ISO 9001:2015 - Designed, manufactured and/or distributed under this quality management system

With its robust design and impressive performance, the CommScope 450-482MHz Fiberglass Omnidirectional Antenna (DB630-C) is the ideal choice for professionals seeking a reliable communication solution. Its wide operating frequency band and 360° horizontal beamwidth ensure comprehensive coverage, while the rugged construction and UV-resistant fiberglass radome material make it suitable for outdoor use.

Don't compromise on your communication needs. Invest in the CommScope 450-482MHz Fiberglass Omnidirectional Antenna (DB630-C) today and experience the difference in quality and performance. Order now and elevate your communication capabilities!
