CommScope 7/16" D/M Ezfit for 1-5/8" AVA and FXL cable (158EZDM)
- Brand: CommScope
- P\N: 158EZDM
- UPC: 888063145599
Do you have questions?
Please contact our experts for assistance.
Description
Description

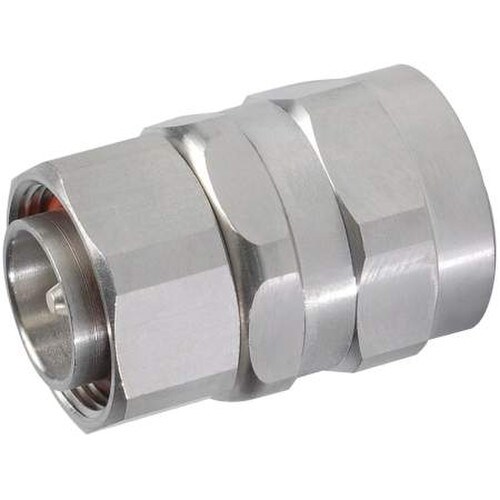

Introducing the CommScope 7/16" D/M Ezfit Connector for 1-5/8" AVA and FXL Cable (158EZDM)
Upgrade your wireless and radiating connections with the CommScope 7/16" D/M Ezfit Connector for 1-5/8" AVA and FXL cable (158EZDM). Designed for professionals who demand high-quality and reliable connections, this connector is part of the renowned EZfit® product series and is compatible with AVA7-50 and AVA7RK-50 cables.
Key Features and Benefits
- High-quality 7-16 DIN Male interface for secure connections
- Compatible with 1-5/8" AVA and FXL cables for versatile use
- Easy installation with clamp outer contact attachment method
- Excellent shielding effectiveness of -130 dB for reduced interference
- Wide operating frequency band of 0 – 2700 MHz for various applications
- Robust construction with silver inner contact plating and trimetal outer contact plating
Technical Specifications
With a straight body style and captivated inner contact attachment method, the CommScope 7/16" D/M Ezfit Connector ensures a secure and reliable connection. The connector has a length of 71.63 mm (2.820 in) and a diameter of 62.99 mm (2.480 in), making it suitable for various installation environments.
Electrical specifications include a 3rd order IMD at frequency of -116 dBm @ 1800 MHz, insertion loss coefficient of 0.05, and an average power at frequency of 3.0 kW @ 900 MHz. The connector has a 50 ohm cable impedance and a 50 ohm connector impedance, ensuring optimal performance.
Designed to withstand harsh environmental conditions, the CommScope 7/16" D/M Ezfit Connector has an operating temperature range of -40 °C to +85 °C (-40 °F to +185 °F) and a storage temperature range of -55 °C to +85 °C (-67 °F to +185 °F). It is also compliant with various regulatory standards, including ISO 9001:2015.
Upgrade Your Connections Today
Don't settle for subpar connections. Invest in the CommScope 7/16" D/M Ezfit Connector for 1-5/8" AVA and FXL cable (158EZDM) and experience the difference in quality and reliability. Order now and enhance your wireless and radiating connections with this top-of-the-line connector.
