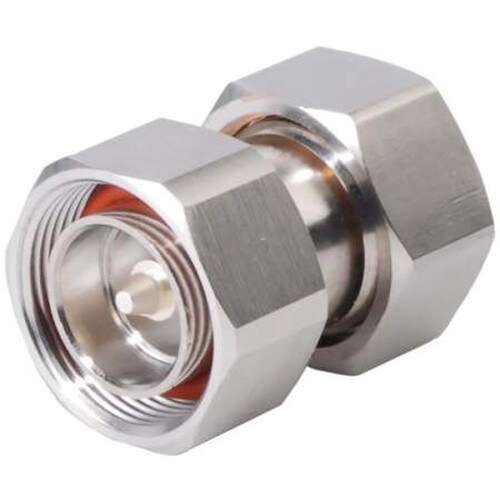

CommScope 7/16 DIN Male to 7/16 DIN Male Adapter (CA-DMDM)
- Brand: CommScope
- P\N: CA-DMDM
- UPC: 729198353674
Do you have questions?
Please contact our experts for assistance.
Description
Introducing the CommScope 7/16 DIN Male to 7/16 DIN Male Adapter (CA-DMDM)
Key Features and Benefits
- High-quality, straight body style adapter
- Compatible with 7-16 DIN Male interfaces
- Supports operating frequency band of 0 – 6000 MHz
- Excellent electrical performance with low contact resistance
- Durable and reliable with 500 cycles of interface durability
- Compliant with various regulatory standards, including ROHS and REACH-SVHC
Upgrade your connectivity with the CommScope 7/16 DIN Male to 7/16 DIN Male Adapter (CA-DMDM). This high-quality adapter is designed to provide a reliable and secure connection between two 7-16 DIN Male interfaces. With its straight body style and silver inner contact plating, this adapter ensures excellent electrical performance and low contact resistance.
Technical Specifications
- Dimensions: 31.75 mm (1.25 in) width, 43.8 mm (1.724 in) length, and 35.92 mm (1.414 in) diameter
- Electrical performance: 1,300.0 W @ 900 MHz average power at frequency, 50 ohm connector impedance, and 4000 V dc test voltage
- Environmental specifications: Operating temperature range of -55 °C to +85 °C (-67 °F to +185 °F) and storage temperature range of -65 °C to +125 °C (-85 °F to +257 °F)
- Weight: 118.43 g (0.261 lb) net weight
Designed, manufactured, and distributed under the ISO 9001:2015 quality management system, the CommScope 7/16 DIN Male to 7/16 DIN Male Adapter (CA-DMDM) is compliant with various regulatory standards This ensures that you are investing in a high-quality, environmentally friendly product that meets industry standards.
User Instructions
- Ensure that both 7-16 DIN Male interfaces are clean and free of debris
- Align the adapter with the first interface and gently insert it
- Secure the connection by tightening the coupling nut
- Repeat the process for the second interface
Experience the difference in connectivity and performance with the CommScope 7/16 DIN Male to 7/16 DIN Male Adapter (CA-DMDM). Don't settle for subpar adapters – invest in a reliable and high-quality product that will enhance your connectivity and improve your overall experience. Upgrade your connections today with the CommScope 7/16 DIN Male to 7/16 DIN Male Adapter (CA-DMDM)!
