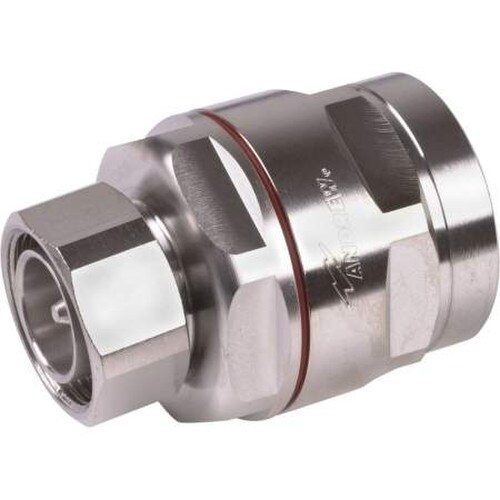

CommScope 7/16in D/M Ezfit for 1-1/4in AVA and FXL Cable (114EZDM)
- Brand: CommScope
- P\N: 114EZDM
- UPC: 888063046889
Do you have questions?
Please contact our experts for assistance.
Description
Introducing the CommScope 7/16in D/M Ezfit for 1-1/4in AVA and FXL Cable (114EZDM)
Upgrade your wireless and radiating connector system with the high-quality CommScope 7/16in D/M Ezfit for 1-1/4in AVA and FXL Cable (114EZDM). Designed for professionals who demand the best in performance and reliability, this connector is perfect for use with AVA6-50 and FXL-1480 cable families. Experience improved signal quality and reduced interference with this top-of-the-line connector from the trusted brand, CommScope.
Key Features and Benefits
- High-quality 7-16 DIN Male interface for optimal signal transmission
- Compatible with AVA6-50 and FXL-1480 cable families
- Easy to install with clamp outer contact attachment method
- Robust construction with silver inner contact plating and trimetal outer contact plating
- Wide operating frequency band of 0 – 4000 MHz
- Excellent shielding effectiveness of -130 dB
- Environmentally friendly with RoHS and REACH-SVHC compliance
Technical Specifications
With a straight body style and captivated inner contact attachment method, the CommScope 114EZDM connector ensures a secure and reliable connection. The connector has a nominal size of 1-1/4 in and dimensions of 67.56 mm (2.660 in) in length and 49.02 mm (1.930 in) in diameter. It is designed to operate in temperatures ranging from -40 °C to +85 °C (-40 °F to +185 °F) and has a storage temperature range of -55 °C to +85 °C (-67 °F to +185 °F).
Electrical specifications include a 3rd order IMD at frequency of -116 dBm @ 1800 MHz, insertion loss coefficient of 0.05, and average power at frequency of 3.0 kW @ 900 MHz. The connector impedance is 50 ohm, with a dc test voltage of 4000 V and a maximum peak power of 40 kW.
For mechanical and environmental specifications, the connector has an attachment durability of 25 cycles, a connector retention tensile force of 1334.47 N (300.000 lbf), and an operating temperature range of -40 °C to +85 °C (-40 °F to +185 °F). It is also compliant with various regulatory standards, including ISO 9001:2015, RoHS and REACH-SVHC.
Upgrade your wireless and radiating connector system today with the CommScope 7/16in D/M Ezfit for 1-1/4in AVA and FXL Cable (114EZDM) and experience the difference in performance and reliability. Don't settle for less – choose CommScope for your connectivity needs.
