CommScope 7/8in EIA Flange LDF4-50A (L4E78-PS)

  • Brand: CommScope
  • P\N: L4E78-PS
  • UPC: 888063955891
(0)No Reviews yet

Availability: Backorder


Your Price: $208.00

Do you have questions?

Please contact our experts for assistance.

Description

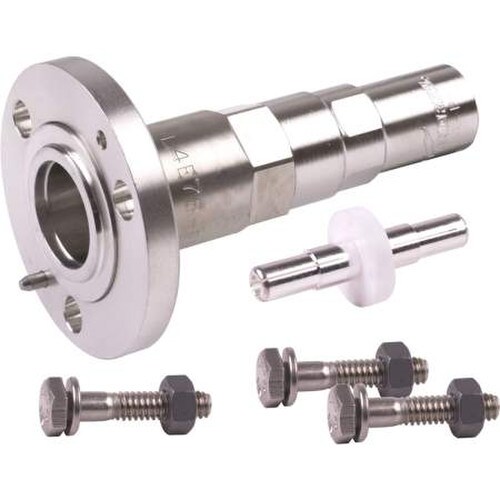

Introducing the CommScope 7/8in EIA Flange LDF4-50A (L4E78-PS)

Upgrade your wireless and radiating connector system with the CommScope 7/8in EIA Flange LDF4-50A (L4E78-PS). Designed for professionals seeking reliable and efficient connectivity, this high-quality connector from the trusted HELIAX® product series ensures optimal performance and durability.

Key Features and Benefits

  • Straight body style for easy installation
  • Compatible with LDF4-50A cable family
  • High-quality silver inner contact plating
  • Trimetal outer contact plating for enhanced durability
  • Wide operating frequency band (0 – 5200 MHz)
  • Excellent shielding effectiveness (-110 dB)
  • Environmentally friendly, compliant with ROHS, CHINA-ROHS, and REACH-SVHC regulations

Technical Specifications

With a length of 90.42 mm (3.560 in) and a diameter of 56.9 mm (2.240 in), the CommScope 7/8in EIA Flange LDF4-50A (L4E78-PS) is designed for seamless integration into your existing setup. The connector features a 50 ohm cable impedance, a maximum RF operating voltage of 2120 V (vrms), and a peak power capacity of 90 kW.

Additionally, the connector boasts impressive return loss/VSWR values across a wide range of frequencies, ensuring optimal signal transmission and minimal interference. The connector is also built to withstand harsh environmental conditions, with an operating temperature range of -55 °C to +85 °C (-67 °F to +185 °F) and compliance with various MIL-STD and IEC test methods for corrosion, moisture resistance, thermal shock, and more.

Easy Installation and Maintenance

The CommScope 7/8in EIA Flange LDF4-50A (L4E78-PS) features a captivated inner contact attachment method and a ring-flare outer contact attachment method, making installation quick and hassle-free. The connector is also designed for easy maintenance, with a pressurizable design and a connector retention tensile force of 889.64 N (200.000 lbf).

Upgrade your connectivity today with the CommScope 7/8in EIA Flange LDF4-50A (L4E78-PS) and experience the difference in performance and reliability. Don't settle for subpar connectors – invest in the best and enjoy seamless, uninterrupted communication.

Don't wait any longer – order your CommScope 7/8in EIA Flange LDF4-50A (L4E78-PS) now and experience the ultimate in connectivity!
