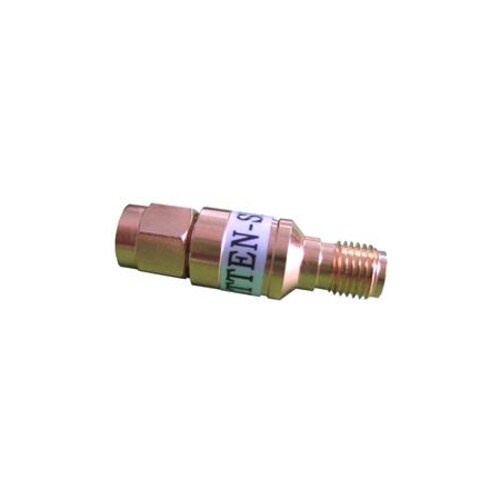

CommScope Attenuator with SMA-Male to SMA-Female 15dB (ATTEN-SMSF-15)

CommScope Attenuator with SMA-Male to SMA-Female 15dB (ATTEN-SMSF-15)

Key Features and Benefits

• High-quality attenuation for precise signal control
• Gold-plated connectors for optimal signal transmission
• Compact and lightweight design for easy installation
• Wide operating frequency band for versatile use
• Compliant with REACH-SVHC regulations for environmental safety

Overview

The CommScope ATTEN-SMSF-15 is a high-performance coax attenuator designed to provide precise signal control in a wide range of applications. With its gold-plated connectors and robust construction, this attenuator ensures optimal signal transmission and long-lasting durability. Its compact and lightweight design makes it easy to install and integrate into your existing system, while its wide operating frequency band ensures versatile use across various industries.

Technical Specifications

• Connector Interface: SMA Female | SMA Male
• Outer Contact Plating: Gold
• Plating: Gold
• Length: 30 mm | 1.181 in
• Diameter: 10 mm | 0.394 in
• Input Power, PEP, maximum: 100 W
• Input Power, RMS, maximum: 2 W
• Return Loss, minimum: 20 dB
• Attenuation: 15 dB
• Attenuation Tolerance: ±0.5 dB
• Impedance: 50 ohm
• Operating Frequency Band: DC – 3000 MHz
• Dielectric Material: PTFE
• Material Type: Brass
• Inner Contact Plating: Gold
• Operating Temperature: -30 °C to +80 °C (-22 °F to +176 °F)
• Weight, net: 8 g | 0.018 lb

Reliable Performance and Easy Integration

With its high-quality attenuation and gold-plated connectors, the CommScope ATTEN-SMSF-15 ensures reliable performance and optimal signal transmission. Its compact and lightweight design allows for easy integration into your existing system, while its wide operating frequency band makes it suitable for a variety of applications. Moreover, this attenuator is compliant with REACH-SVHC regulations, ensuring environmental safety and peace of mind.

Upgrade your signal control capabilities with the CommScope ATTEN-SMSF-15 attenuator today and experience the difference in performance and reliability. Don't wait – order now!
