CommScope Control Unit Interface Adapter Kit (ATC200-LITE-USB)
- Brand: CommScope
- P\N: ATC200-LITE-USB
- UPC: 888063908576
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

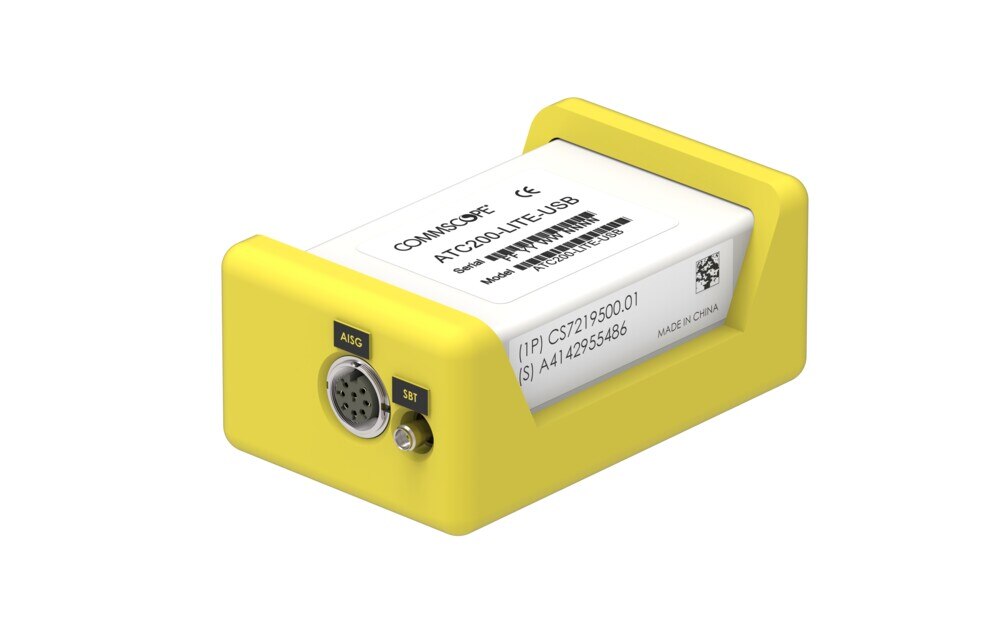

CommScope Control Unit Interface Adapter Kit (ATC200-LITE-USB)
The CommScope Control Unit Interface Adapter Kit (ATC200-LITE-USB) is a portable controller designed to be carried from site to site for Remote Electrical Tilt (RET) antenna setup and optimization. This powerful and compact device supports up to 32 RET actuators operating in AISG 1.1 or 2.0 modes, making it an essential tool for professionals in the field.
Key Features
- Carried from site to site for RET antenna setup and optimization
- Supports up to 32 RET actuators operating in AISG 1.1 or 2.0 modes

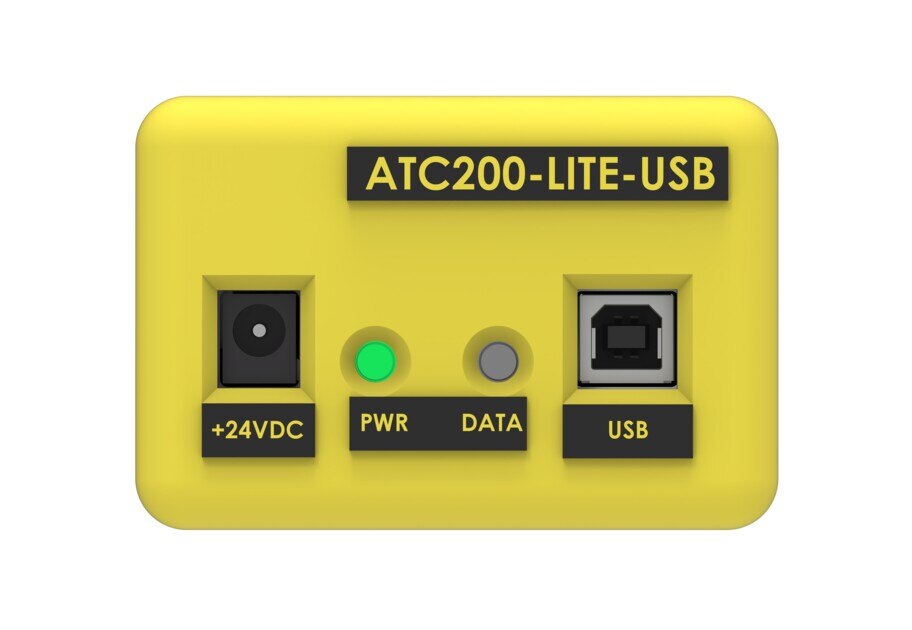

- LED display indicates the presence of input power, output power, and data communication
- Equipped with USB and serial connectors
- Power supply efficiency is Energy Star® Level IV rated
With a net weight of just 0.4 kg (0.882 lb), the ATC200-LITE-USB is a lightweight and portable solution for professionals who require a reliable and efficient RET controller on the go. Upgrade your antenna setup and optimization process with the CommScope Control Unit Interface Adapter Kit (ATC200-LITE-USB) today and experience the difference in performance and efficiency. Don't miss out on this essential tool - order now!
Specifications
Product Classification
| Product Type | RET controller |
General Specifications

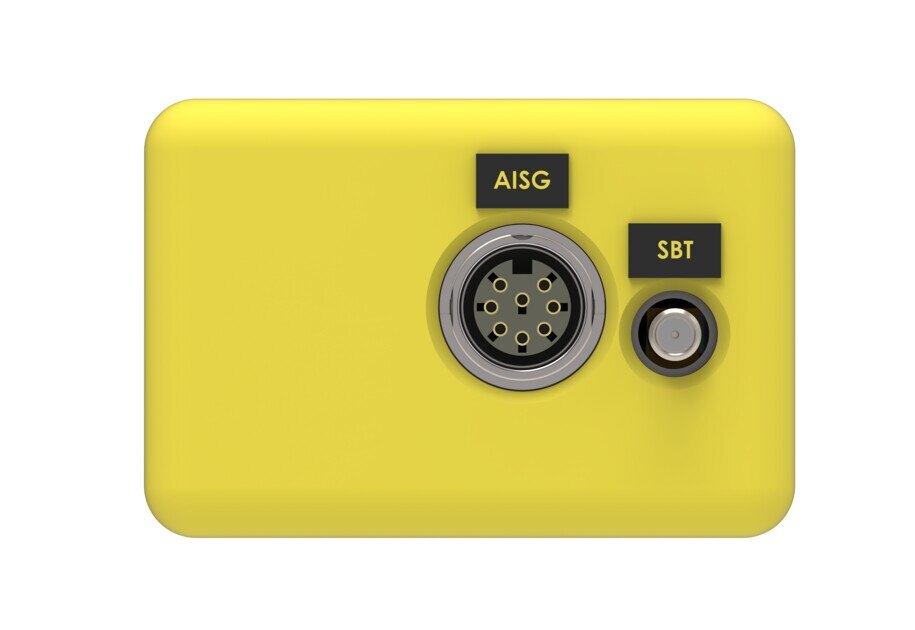

| AISG Output Connector | 8-pin DIN Female |
| AISG Output Connector Quantity | 1 |
| Auxiliary Interface | USB |
| Color | Gray | Yellow |
Dimensions
| Height | 50.8 millimeter | 2 inch |
| Width | 127 millimeter | 5 inch |
| Depth | 76.2 millimeter | 3 inch |
Electrical Specifications
| Input Voltage | 110/240 Vac |
| Output Current at Voltage, continuous | 3.0 A @ 24 V |
| Output Current at Voltage, maximum | 3.0 A @ 24 V |
| Output Voltage, typical | 24 V |
| Electrical Safety Standard | CB | CE | IEC 60950-1 |
| Interface Protocol Signal | Data | dc |
| Power Supply | dc Jack |
| Protocol | AISG 1.1 | AISG 2.0 |
Material Specifications
| Material Type | Aluminum |
Environmental Specifications
| Operating Temperature | -40 °C to +55 °C (-40 °F to +131 °F) |
| Relative Humidity | Up to 95%, non-condensing |
Packaging and Weights

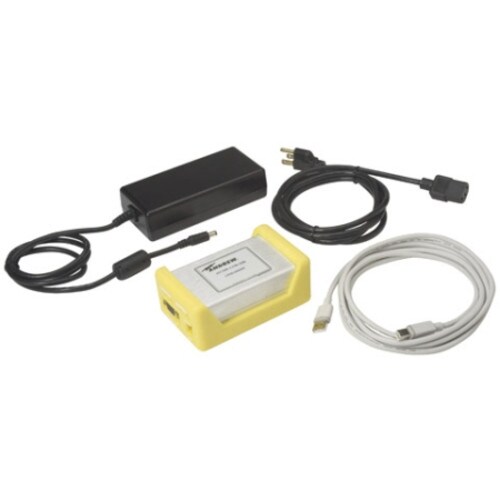

| Included | Control unit | Power supply | Site configuration worksheet | US adapter | USB cable |
| Weight, net | 0.4 kg | 0.882 lbs. |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
| ROHS | Compliant |
CHINA-ROHS | Below maximum concentration value |
| REACH-SVHC | Compliant as per SVHC revision on www.commscope.com/ProductCompliance |
| UK-ROHS | Compliant |
