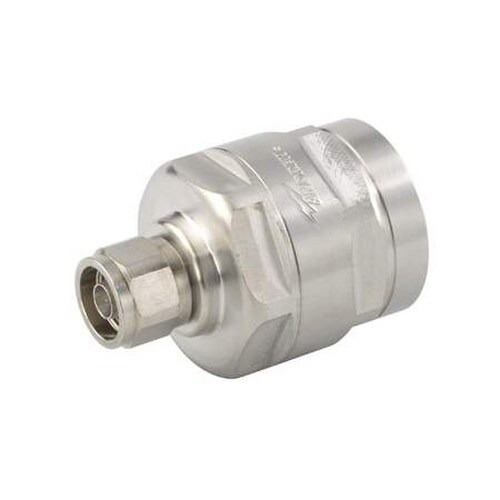

CommScope N/M Ezfit for 1-1/4in AVA and FXL Cable (114EZNM)

  • Brand: CommScope
  • P\N: 114EZNM
  • UPC: 888063552199
(0)No Reviews yet

Availability: Backorder


Your Price: $205.00

Do you have questions?

Please contact our experts for assistance.

Description

Introducing the CommScope N/M Ezfit Connector for 1-1/4in AVA and FXL Cable (114EZNM)

Upgrade your wireless and radiating connections with the CommScope N/M Ezfit Connector for 1-1/4in AVA and FXL Cable (114EZNM). Designed for professionals who demand the best in performance and reliability, this high-quality connector ensures seamless connectivity and optimal signal transmission.

Key Features and Benefits

  • Compatible with 1-1/4in AVA6-50 and FXL1480 cables
  • Easy installation with clamp outer contact attachment method
  • High-quality silver inner contact plating for enhanced conductivity
  • Impressive shielding effectiveness of -130 dB
  • Wide operating frequency band of 0 – 4000 MHz
  • Robust mechanical and environmental specifications for long-lasting performance

Technical Specifications

With a straight body style and N Male interface, the 114EZNM connector offers a captivated inner contact attachment method and trimetal outer contact plating. It is not pressurizable and measures 71.88 mm in length and 49.02 mm in diameter. The connector has a nominal size of 1-1/4 in and is designed for use with AVA6-50 and FXL1480 cables.

Electrical specifications include a 3rd order IMD at frequency of -116 dBm @ 1800 MHz, insertion loss coefficient of 0.05, and average power at frequency of 0.6 kW @ 900 MHz. The connector has a 50 ohm cable and connector impedance, with a maximum dc test voltage of 2000 V.

Return loss/VSWR values range from 1.025 to 1.065, depending on the frequency. Mechanical specifications include an attachment durability of 25 cycles, connector retention tensile force of 1334.47 N, and coupling nut proof torque of 24.86 N-m.

Environmental specifications include an operating temperature range of -40 °C to +85 °C, storage temperature range of -55 °C to +85 °C, and corrosion test method of MIL-STD-1344A. The connector is also compliant with ISO 9001:2015 standards.

Experience the CommScope Difference

As a leading provider of wireless and radiating connectors, CommScope is committed to delivering products that meet the highest standards of quality and performance. The 114EZNM connector is no exception, offering a reliable and efficient solution for your connectivity needs.

Don't settle for less when it comes to your wireless connections. Upgrade to the CommScope N/M Ezfit Connector for 1-1/4in AVA and FXL Cable (114EZNM) today and experience the difference in performance and reliability that only CommScope can provide.
