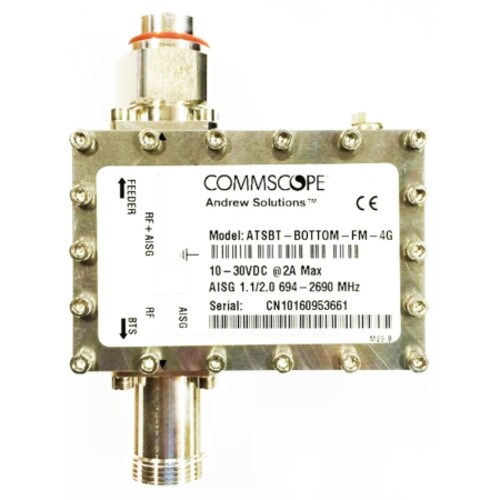

CommScope Teletilt Bottom Smart Bias Tee (ATSBT-BOTTOM-FM4G)
- Brand: CommScope
- P\N: ATSBT-BOTTOM-FM4G
- UPC: 729198358105
Do you have questions?
Please contact our experts for assistance.
Description
Description
Teletilt Bottom Smart Bias Tee for the bottom unit. Width 3.7 inches, Depth 2.0 inches, and Height 5.63 inches.
Key Features
Key Features
- 694 - 2690 MHz Operating Frequency Band, dc Blocked and RF Antenna Interface Signal, AISG/data/ RF BTS Interface Signal, Data/dc Interface Protocol Signal, 10-30 Vdc Voltage Range, and 1.17:1/ 22 dB typical VSWR/ Return Loss.
- 0.6 W maximum Power Consumption, 250 W @ 1850 MHz/500 W @ 850 MHzmaximum RF Power, 50 ohm Impedance, 0.1 dB typical Insertion Loss, -158.0 dBc 3rd Order IMD, Two +43 dBm carriers 3rd Order IMD Test Method.
- Electromagnetic Compatibility (EMC) - CFR 47 Part 15, Subpart B, Class B/ EN 55022, Class B/ ICES-003 Issue 4 CAN/CSA-CEI/IEC CISPR 22:02.
- 7-16 DIN Female Antenna Interface, 7-16 DIN Male BTS Interface, 8-pin DIN Female, AISG Input Connector.
