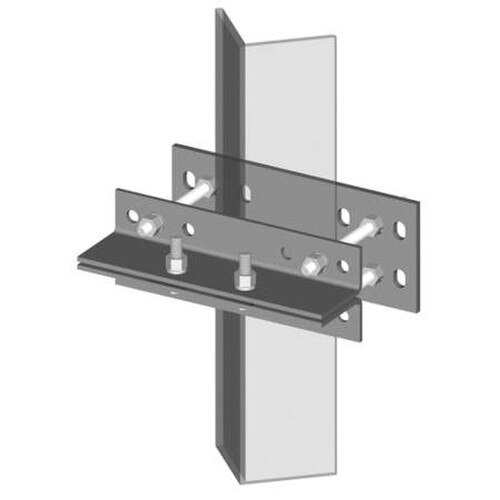

CommScope Universal Saddle Mount Clampset (SM-U2080)

CommScope Universal Saddle Mount Clampset (SM-U2080)

Key Features and Benefits

Experience the ultimate in tower installation support with the CommScope Universal Saddle Mount Clampset (SM-U2080). This versatile and robust mounting solution is designed to provide optimal structural support for your equipment. Crafted from hot dip galvanized steel, this clampset is built to withstand harsh environments and ensure long-lasting performance.

• Universal design accommodates straight or tapered legs up to 8 in OD, 8 in angle 60°, or 6 in angle 90°
• Hot dip galvanized steel construction for enhanced durability and corrosion resistance
• Compliant with ISO 9001:2015, ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS standards
• Package includes two clampsets

Technical Specifications

• Mounting: Angle 60°, 203.2 mm (8 in) | Angle 90°, 152.4 mm (6 in) | Straight or tapered legs up to 203.2 mm (8 in) OD
• Tower Taper: Non-tapered
• Dimensions: Height: 152.4 mm | 6 in, Width: 279.4 mm | 11 in, Length: 254 mm | 10 in
• Mounting Diameter, maximum: 203.2 mm | 8 in, Mounting Diameter, minimum: 0

Upgrade Your Tower Installation Today

With the CommScope Saddle Mount Clampset, you can ensure your equipment is securely mounted and ready to withstand any environment. Its universal design and robust construction make it a reliable choice for any tower installation. Don't compromise on quality and durability - choose CommScope for your mounting needs.

Take the next step in enhancing your tower installation. Invest in the CommScope Saddle Mount Clampset today.
