Emerson Network Energy GMT Fuse Panel 80A (545700)

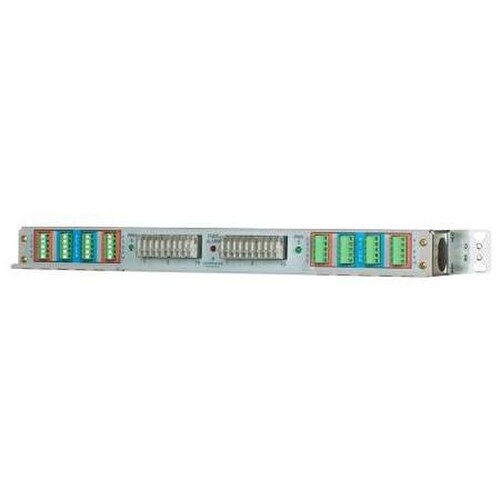

EMERSON GMT Fuse Panel 80Amp Max Bus, 15Amp max per port. 20 Position 1RU. These Fuse Distribution Panels are configured as low profile 1.75" (1RU) rackmount units which accommodate 20 or 40 (depending on model) circuits for DC distribution to power network equipment through GMT fuses. These panels have a dual input bus and are equipped with dry form "C" alarm, contacts that on each bus monitor input power and blown fuses. Front panel LEDs indicate fuse failure and external input alarms and normal operation.

Key Features

DC Output Voltage Range: 9-60V

NEEBS 3 Certified

19" or 23" Rack Mounting

Spare Fuse Holder

Clear Lexan cover protects wiring connections

+/-24Vdc or +/-48Vdc Nominal
