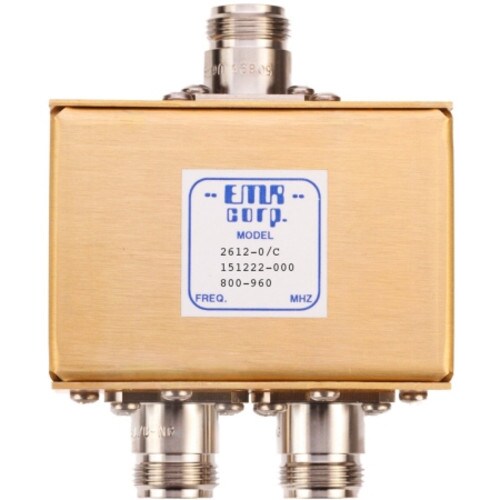

EMR 806-900MHz 2-Way Power Combiner/Splitter 10W 50 Ohm (2612-0-C)

This EMR 50-Ohm Power Combiner/Splitter offers a frequency range from 800 MHz to 960 MHz with low insertion loss and excellent VSWR. Other features include high isolation, excellent amplitude and phase balance, and rugged packaging. This item has a maximum input power of 5W as a combiner and 10W as a splitter with a typical insertion loss of 3.15 dB. The connectors are N-female. All EMR power dividers are backed by 5-Year Manufacturer's Warranty.
Key Features

• Wideband frequency range of 800-960 MHz
• High isolation
• Low typical insertion loss of 3.15 dB and max insertion loss of 3.5 dB
• 5-year manufacturer's warranty

Special Order. Non-Cancellable and Non-Returnable
