L-Com Connectivity Product 802.3af Compatible PoE Passive Injector (BT-CAT5-P1)
- Brand: L-Com Connectivity
- P\N: BT-CAT5-P1
- UPC: 888063021800
Do you have questions?
Please contact our experts for assistance.
Description
Description

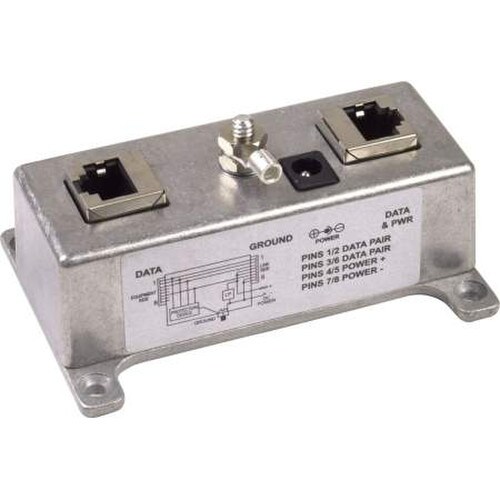

The Hyperlink Power Over Ethernet passive injector is a commercial grade PoE device that provides DC power for one PoE-equipped device. It is compatible with AP's and other equipment supporting the IEEE standard PoE pinout. PoE eliminates the need for an AC outlet at each AP location. Only a single Ethernet cable is run to each AP instead of separate power and data cables. The injector is typically installed near the Ethernet hub. 5VDC to 48 VDC input and a 2.5mm pigtail is required.
The unit can be used as either an "injector" or as a "tap". When used as an injector the device sends DC power through the Ethernet cable to a remote PoE device. When used as a "tap" this unit taps the injected DC power from the Ethernet cable for use by certain non-PoE devices.
Key Features
Special Order. Non-Cancellable and Non-Returnable
The unit can be used as either an "injector" or as a "tap". When used as an injector the device sends DC power through the Ethernet cable to a remote PoE device. When used as a "tap" this unit taps the injected DC power from the Ethernet cable for use by certain non-PoE devices.
Key Features
- Lightning and surge protection on data and power lines
- Industrial grade cast aluminum housing
- Shielded RJ-45 jacks EMI noise suppression
- Includes 48 VDC at 48 Watt power supply
- For use in applications such as wireless LAN access points and bridges, wireless LAN WiFi amplifiers and amplified antennas, VoIP, IP surveillance cameras, and Bluetooth access points
Special Order. Non-Cancellable and Non-Returnable
