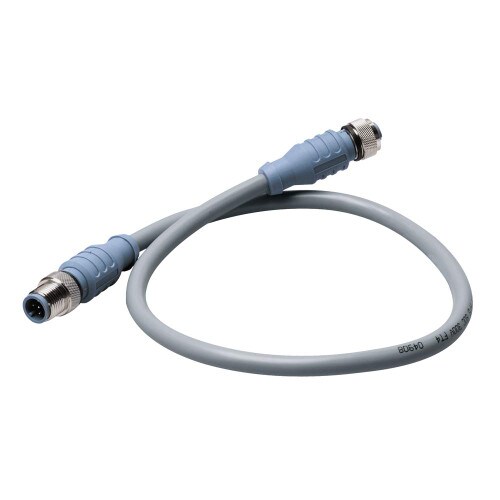

Maretron Micro Double-Ended Cordset 2 Meter (CM-CG1-CF-02-0)

This micro double-ended cordset has Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray, Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray, Contact Mat/Plating: Brass/Gold, Coupling Nut Mat/Plating: Brass/Nickel, Connector outside Diameter: 0.59 Electrical. With a current rating: 4.0 Amps, Voltage Rating: 250 V. The Outer Jacket Mat/Color: PVC/Gray, made of Conductor Insulation Material: HDPE (data pair), SRPVC (power pair), with Number of Conductors: 4X22 AWG, 22 AWG Drain Wire. Its shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair). This products Protection Class: IEC IP68, NEMA 1, 3, 4,6P, Temperature Rating: -40 degrees C to 80 degrees C to (-40 degrees F to 176 degrees F). (Cable) UL: PLTC 75 degrees C Sunlight Resistant E90625, AWM 80 degrees C 300V, (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 degrees C, AWM I/II A/B 80C 300V FT4, NMEA: NMEA 2000 Approved.
